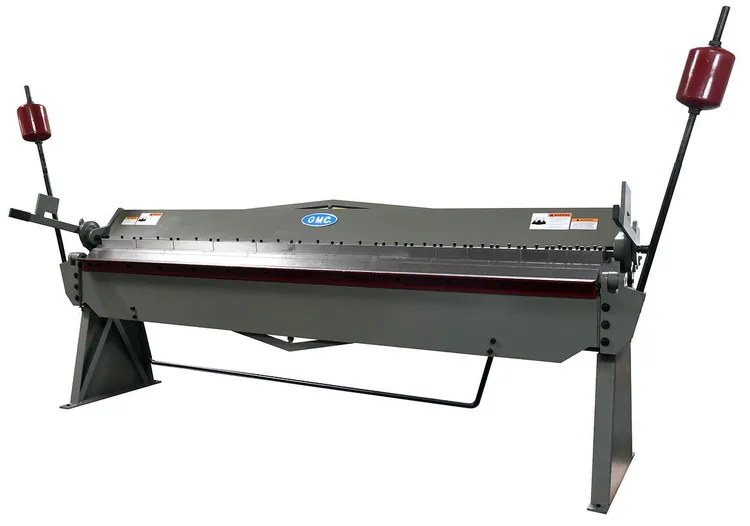

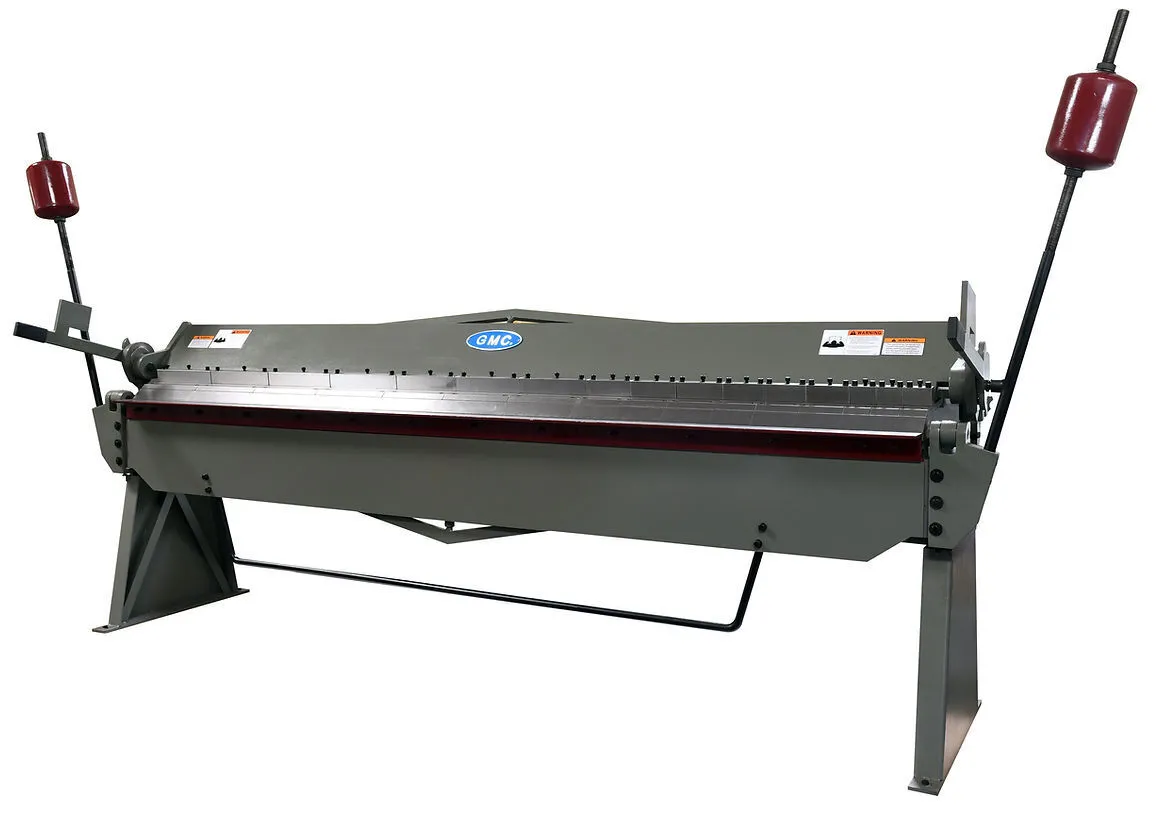

GMC BB-612-6HD, 6' 12 Gauge Sheet Metal Finger Brake | Box and Pan
Have one to sell?
ConditionNew
New
Compared to Baileigh's Box and Pan Brake BB-7212
Finger Brake Standard Features
• ISO 9002 certified
• Large 1-9/16” beam opening, adjustable
• 1” beam adjustment (front and back)
• Hem light gauge material 26 Ga. or thinner
• Total pieces fingers assortment:
- BB-412-6HD: 2”/1pc, 3”/4pcs, 4”/2pcs, 25”/1pc
- BB-612-6HD: 2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs
• Stop rods for repeat bends
• All steel heavy body construction with extra heavy tie rod for minimum deflection
• One year parts only warranty
Bending capacity in Mild Steel: 12 Ga.
Bending capacity in Stainless Steel: 16 Ga.
Bending capacity in soft aluminum 3/16"
Max. hemming thickness for mild steel: 26 Ga.
Max. box depth 6"
Bending length capacity 6’
Bending angle, degree 0-135
Beam adjustment, front and back 1"
Minimum reserve bend 1/2"
Manual clamping Standard
Beam opening 1-9/16"
Net weight 2,250 lbs.
Shipping weight: 2,350 lbs.
Machine Dimensions: 120" x 32" x 77"
Shipping Dimensions: 100” x 30” x 40”
