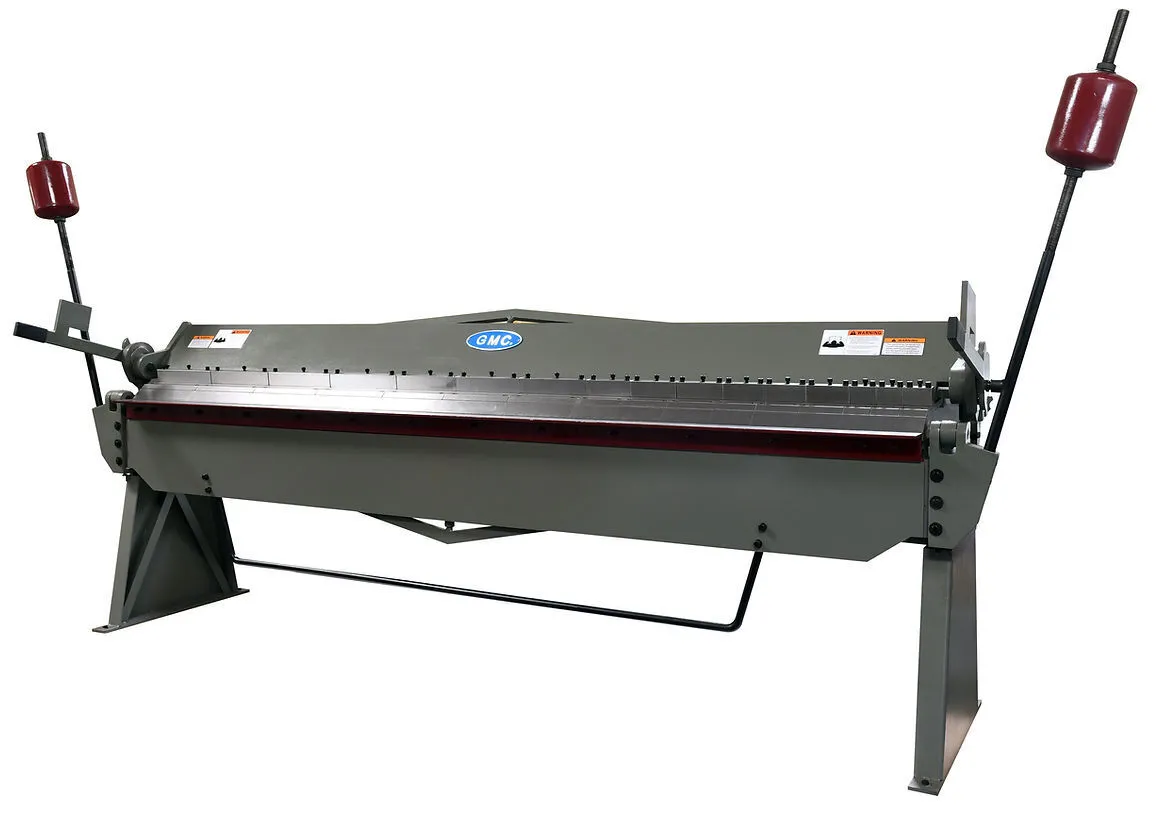

GMC BB-812-6HD, 8 ft. Sheet Metal Finger Brake | Box and Pan Brake
Have one to sell?
ConditionNew
New
Compare to Baileighs Box and Pan Brake BB-9612
Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
• One Year Parts Only Warranty
• ISO 9002 certified
• 1-9/16” adjustable beam opening
• 1” beam adjustment (front and back)
• Capable of hemming light gauge material of 26 gauge or thinner
• Capable of straight bending material fully across
• Oilable bearings to maintain precision overtime
• Adjustable stop gauge is included to allow the operator to perform repeat bends
• 16 Total fingers assortment:
- 2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
• 2 - Adjustable counterweights to assist you at max capacity bends
• All steel heavy body construction with extra heavy tie rod for minimum deflection
• Some assembly is required
Bending capacity in Mild Steel: 12 Ga.
Bending capacity in Stainless Steel: 16 Ga.
Bending capacity in soft aluminum : 3/16"
Max. hemming thickness for mild steel: 26 Ga.
Max. box depth 6"
Bending length capacity 8'
Bending angle, degree 0-135
Beam adjustment, front and back 1"
Minimum reserve bend 1/2"
Manual clamping Standard
Beam opening 1-9/16"
Net weight 2,850 lbs.
Shipping weight: 3,050 lbs.
Machine Dimensions: 139" x 32" x 77"
Shipping Dimensions: 118” x 30” x 40”
