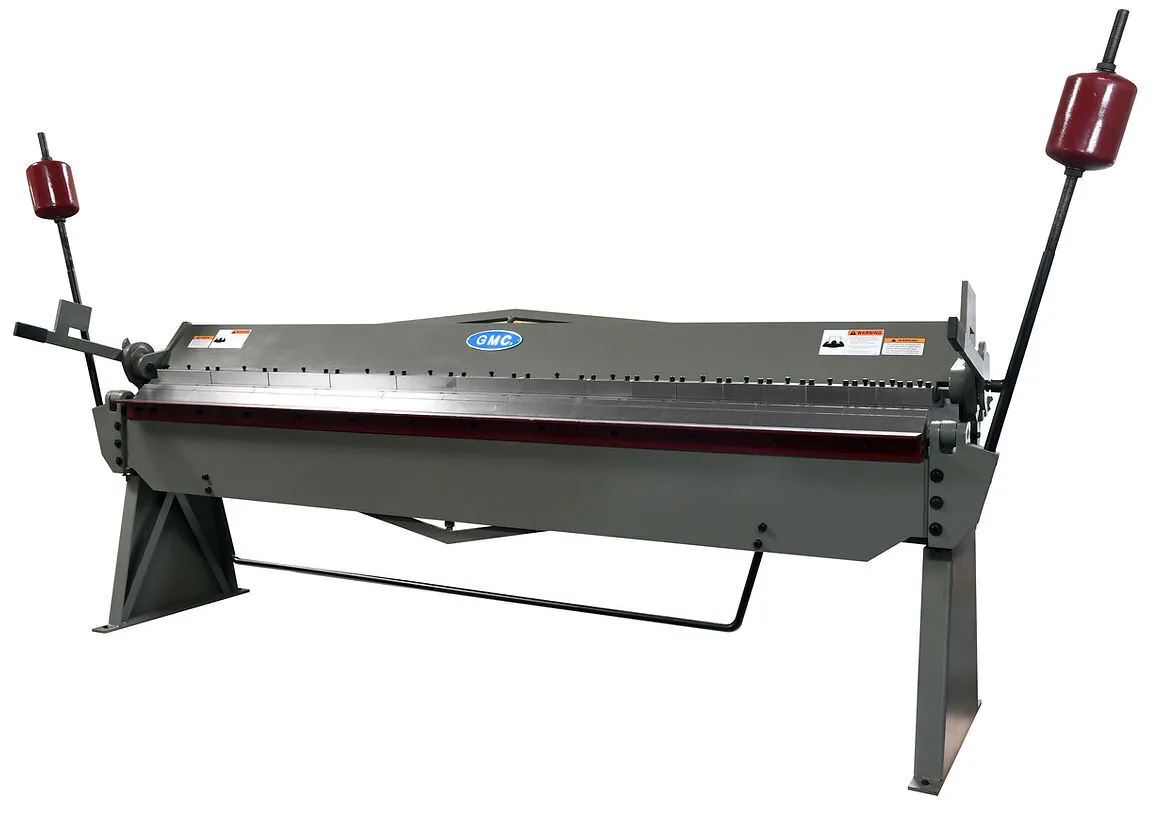

GMC BB-1014-6HD, 10' 14 Gauge Sheet Metal Finger Brake | Box and Pan
Have one to sell?
ConditionNew
New
Compared to Baileigh's BB-12014 Sheet Metal Brake
Box and Pan Brake Standard Features
Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
• One Year Parts Only Warranty
• ISO 9002 certified
• 1-9/16” adjustable beam opening
• 1” beam adjustment (front and back)
• Capable of hemming light gauge material of 26 gauge or thinner
• Capable of straight bending material fully across
• Oilable bearings to maintain precision overtime
• 16 Total fingers assortment:
- 3”/3pcs
- 5”/3pcs
- 6”/3pcs
- 10”/3pcs
- 12”/4pcs
• Adjustable stop gauge is included to allow the operator to perform repeat bends
• 2 - Adjustable counterweights to assist you at max capacity bends
• All steel heavy body construction with extra heavy tie rod for minimum deflection
• Some assembly is required
Bending capacity in Mild Steel: 14 Ga.
Bending capacity in Stainless Steel: 18 Ga.
Bending capacity in soft aluminum : 10 Ga.
Max. hemming thickness for mild steel: 26 Ga.
Max. box depth 6"
Bending length capacity 10’
Bending angle, degree 0-135
Beam adjustment, front and back 1"
Minimum reserve bend 1/2"
Manual clamping Standard
Beam opening 1-9/16"
Net weight 3,250 lbs.
Shipping weight: 3,350 lbs.
Machine Dimensions: 159" x 32" x 77"
Shipping Dimensions: 142” x 30” x 41”
