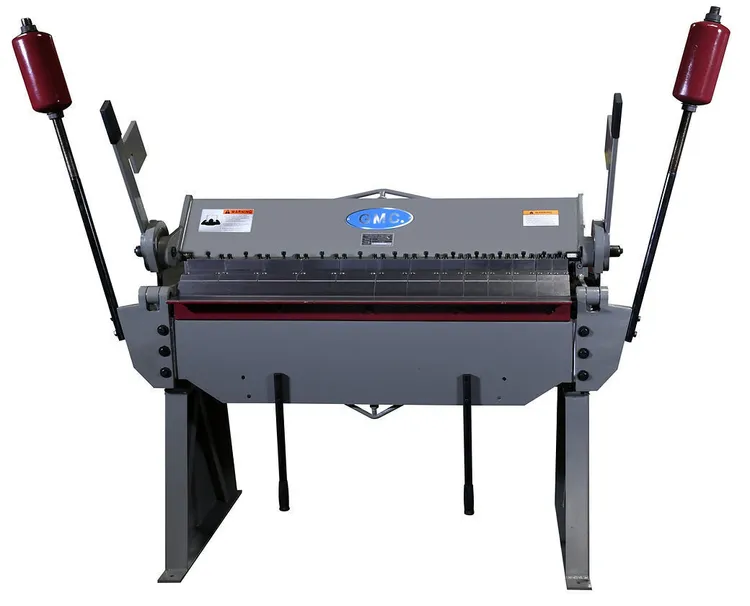

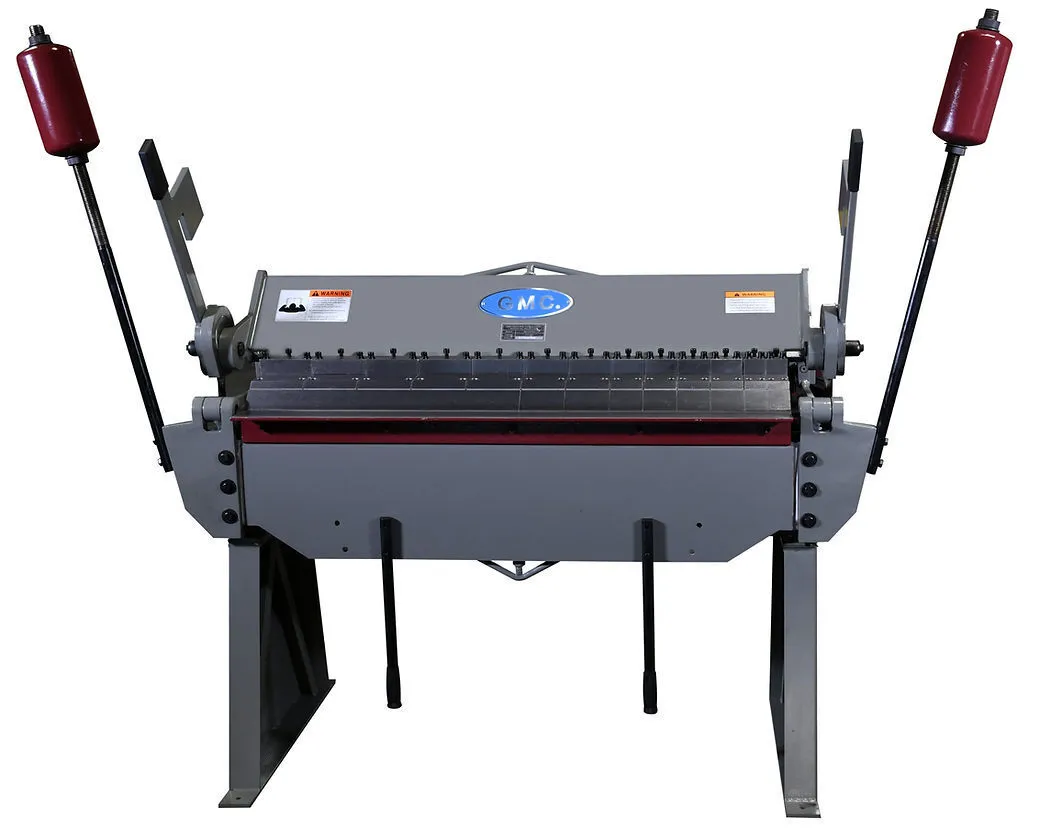

GMC BB-412-6HD, 48" Box and Pan Brake, Metal Finger Brake
Have one to sell?
ConditionNew
New
The BB-412-6HD manual box and pan brake can make a 6" box in depth and has a 48" length capacity. Can bend up to 12 gauge mild steel or lighter. Our 48" metal finger brake is compact and will be a perfect addition to any metal fabrication shop. ***Compared to Baileigh's Finger Brake BB-44812
Finger Brake Standard Features:
• ISO 9002 certified
• 1-year parts only warranty
• Large 1-9/16” beam opening, adjustable
• 135 degree bend angle capacity with built in scale
• 2 - handwheels on the rear to ajust the gap
• 1” beam adjustment (front and back)
• Hem light gauge material 26 Ga. or thinner
• 2 - 30 lbs. adjustable counterweights
• Includes 9 fingers total: (measures 49")
- 2 - 2"
- 4 - 3"
- 2 - 4"
- 1 - 25"
• 1 - Simple stop rod is included to make repeat bends
• All steel heavy body construction with extra heavy tie rod for minimum deflection
Bending capacity in Mild Steel: 12 Ga.
Bending capacity in Stainless Steel: 16 Ga.
Bending capacity in soft aluminum 3/16"
Max. hemming thickness for mild steel: 26 Ga.
Max. box depth 6"
Bending length capacity 4’
Bending angle, degree 0-135
Beam adjustment, front and back 1"
Minimum reserve bend 1/2"
Manual clamping Standard
Beam opening 1-9/16"
Net weight 1,150 lbs.
Shipping weight: 1,265 lbs.
Machine Dimensions: 82" x 32" x 69"
Shipping Dimensions: 67” x 30” x 38”
