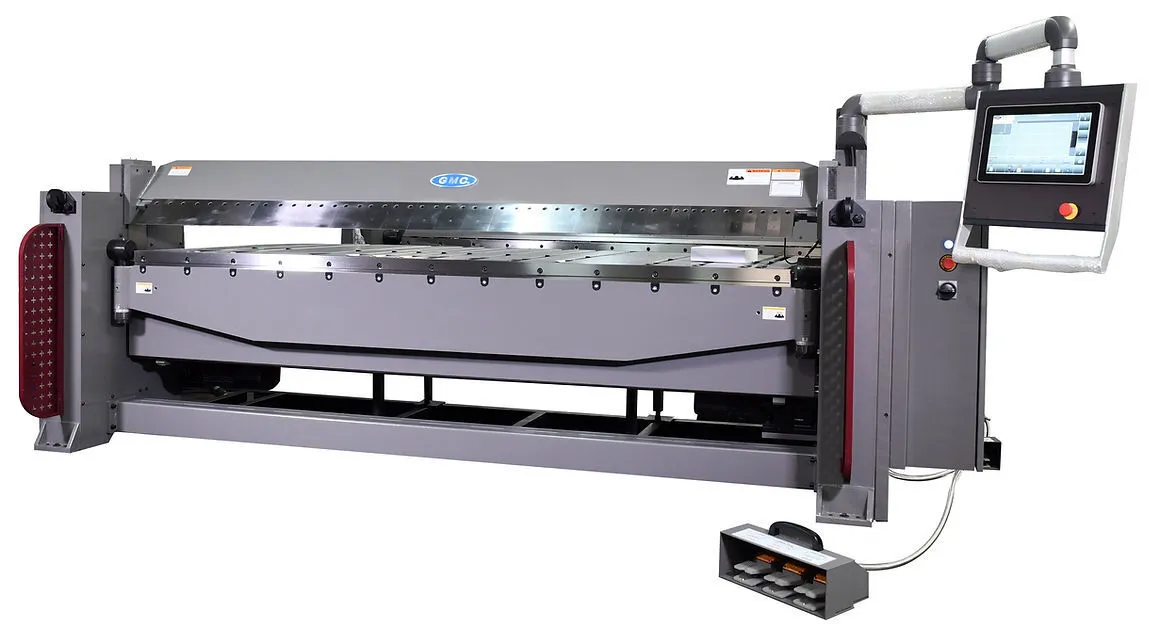

GMC EBB-1014CNC 10' x 14 Ga. - CNC Folder and Box & Pan Brake
Have one to sell?
ConditionNew
New
CNC folding machine with an Italian ESA CNC control. 11" touch screen finger brake. 2000 jobs memory capacity.
Standard Features:
• ISO 9001 certified
• Designed in US and Taiwan quality Machine
• Meet OSHA and CE safety standard
• ESA S840 CNC control, made in Italy
• 16” large Digital glass touch screen
• Max. 99 bends per program
• Upto 2000 Programs Storage
• Profiles library with graphics
• Programmable Radius Bend
• Programmable Angle/ Angle Correct
• 48” CNC back gauge with table and fingers
• One piece 10' long straight finger ( not installed)
• Comes with one 1” Insert Bar and one ½” Insert Bar
• Yaskawa Servo motors and Drives
• Schneider electrical components
• All steel construction for maximum rigidity
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• Power supply is 220V, 3 phase or 208V, 3 phase
• One year industrial warranty for parts
Capacity:
Mild Steel/hot roll, tensile 60,000PSI 14Ga.
Stainless Steel/cold roll, tensile 85,000PSI 18Ga.
Soft Aluminum, tensile 28,000PSI 10Ga. / 1/8” thick
Close hemming with one piece finger 26Ga.
Open hemming with one piece finger 24Ga.
Bending length capacity 10’1”
Bend Angle Degree, programmable 0- 135 degree
Max depth of box or pan 4”
Large Beam Opening/clamping opening 4-7/8”
Min. Reverse Bend 1/2”
Max. Table Back Gauge Distance 48-3/8”
Min. Table Back Gauge Distance 1/2”
Back Gauge Repeatability 0.0039”
Back Gauge Table height 35-3/4”
Motor for bending leaf 4HP, 220V,3phase
Servo motor for back gauge 2HP ,220V, 3phase
Clamping motor 1-1/2HP , 220V, 3phase
Amperage Draw 35A
Machine weight , LBS 9,850 LBS
Shipping weight 10,150 LBS
Machine dimensions, LWH 168x79x67”
Shipping dimensions 174x80x71”
CNC folding machine with an Italian ESA CNC control. 11" touch screen finger brake. 2000 jobs memory capacity.
Standard Features:
• ISO 9001 certified
• Designed in US and Taiwan quality Machine
• Meet OSHA and CE safety standard
• ESA S840 CNC control, made in Italy
• 16” large Digital glass touch screen
• Max. 99 bends per program
• Upto 2000 Programs Storage
• Profiles library with graphics
• Programmable Radius Bend
• Programmable Angle/ Angle Correct
• 48” CNC back gauge with table and fingers
• One piece 10' long straight finger ( not installed)
• Comes with one 1” Insert Bar and one ½” Insert Bar
• Yaskawa Servo motors and Drives
• Schneider electrical components
• All steel construction for maximum rigidity
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• Power supply is 220V, 3 phase or 208V, 3 phase
• One year industrial warranty for parts
Capacity:
Mild Steel/hot roll, tensile 60,000PSI 14Ga.
Stainless Steel/cold roll, tensile 85,000PSI 18Ga.
Soft Aluminum, tensile 28,000PSI 10Ga. / 1/8” thick
Close hemming with one piece finger 26Ga.
Open hemming with one piece finger 24Ga.
Bending length capacity 10’1”
Bend Angle Degree, programmable 0- 135 degree
Max depth of box or pan 4”
Large Beam Opening/clamping opening 4-7/8”
Min. Reverse Bend 1/2”
Max. Table Back Gauge Distance 48-3/8”
Min. Table Back Gauge Distance 1/2”
Back Gauge Repeatability 0.0039”
Back Gauge Table height 35-3/4”
Motor for bending leaf 4HP, 220V,3phase
Servo motor for back gauge 2HP ,220V, 3phase
Clamping motor 1-1/2HP , 220V, 3phase
Amperage Draw 35A
Machine weight , LBS 9,850 LBS
Shipping weight 10,150 LBS
Machine dimensions, LWH 168x79x67”
Shipping dimensions 174x80x71”
