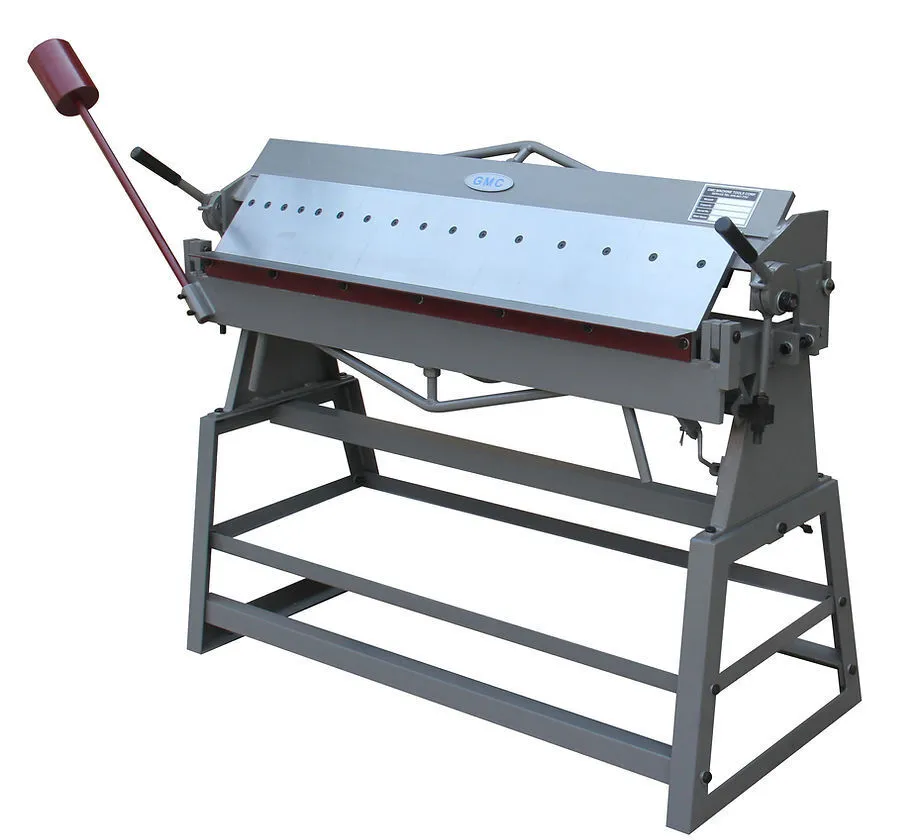

GMC BB-4816H Manual Box & Pan Brake
Have one to sell?
ConditionNew
New
Introducing the BB-4816H 48" Manual Box and Pan Brake, crafted to excel in the realm of fabrication. Engineered for precision, it effortlessly shapes 16-gauge mild steel into sleek angles of up to 135°. With its arsenal of 16 removable fingers, this brake is finely tuned for box forming and a spectrum of specialized bending operations. Embrace its versatility as you navigate the intricacies of your fabrication projects, whether employing the fingers individually or collectively for unparalleled flexibility and finesse.
Standard Features:
• ISO 9002 certified
• Large 1-9/16” beam opening, adjustable
• 3/8” beam adjustment ( front and back )
• Very thick and long fingers to make max. 4” depth of box & pan.
• Total pieces fingers assortment:
• 2”/5pcs, 3”/6pcs, 4”/5pcs
• Stop rods for repeat bends
• Comes with one counter weight
• Comes with a tall floor stand, assembly required
• Comes a tray for holding removable fingers and tools
• All steel heavy body construction with extra heavy tie rod for minimum deflection
• One year warranty for parts
Bending capacity in mild steel 16gauge
Bending capacity in stainless steel 20 gauge
Max. hemming thickness in mild steel 28 gauge
Max. box depth 4”
Bending length capacity 48”=4’
Bending angle , degree 0-135
Beam adjustment, front and back 3/8”
Minimum reverse bend 1/2”
Manual clamping standard
Beam opening 1-9/16”
Machine Net weight, LBS 567 LBS
Shipping Weight, LBS 617 LBS
Machine Dimensions, inch 71x26x56”
Shipping Dimensions, inch 73x24x28”
