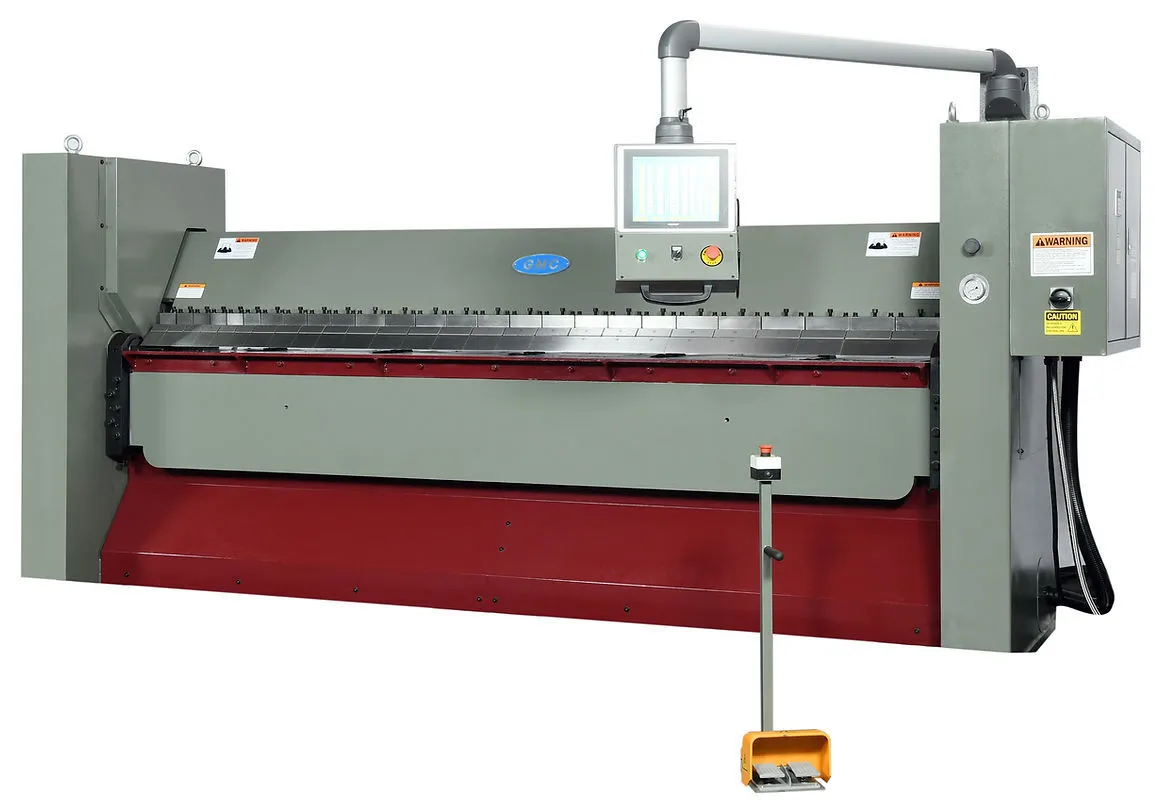

GMC HBB-1010NC, 10 ft. Hydraulic Box and Pan Brake, with NC Controller
Have one to sell?
ConditionNew
New
Standard Features
• ISO 9001 certified
• Meet OSHA and CE safety standard
• 48” NC table back gauge with fingers
• Max. 16 bends per program
• Upto 100 Program Storage
• Programmable Angle/ Angle Correct
• NC ram height control for open hemming
• Hardened fingers and table
• Germany Rexroth hydraulic system
• Yaskawa Servo motors and Drives
• Schneider electrical components
• All steel construction for maximum rigidity
• Hydraulic logic system centrally located and quiet
• Safety type foot pedal with handle and E-stop switch
• Safety 24V low voltage & overload protection
• One year industrial warranty for parts
Capacity:
Mild Steel(hot roll)60K PSI 10 Ga.
Stainless Steel 85 K PSI 14 Ga.
Soft aluminum 28K PSI 1/4"
Hemming max thickness: 22 Ga.
Bending length capacity 10'
Bend Angel Degree, programmable 135 degree
Max. Box Depth 153mm=6.02”
Large Beam Opening/Clamping Opening 3"
Beam front/back adjustment 1"
Min. Reverse Bend 1"
Max. Table Back Gauge Distance 48-3/8"
Min. Table Back Gauge Distance 1/4"
Back Gauge Repeatability 0.0039"
Back Gauge Table Height 35-3/4"
Assorted fingers
3"
4"
5"
6"
Main Motor 10HP,220V/208V, 3ph (35amps)
Servo Motor for back gauge 1HP
Hydraulic Oil Tank Capacity: 32 Gal.
Recommended hydraulic oil: Shell #68 or equivalent
Machine Weight: 11,550 lbs.
Shipping weight: 11,850 lbs.
Machine Dimensions: 175" x 93" x 76"
Shipping Dimensions: 163" x 85" x 78"
