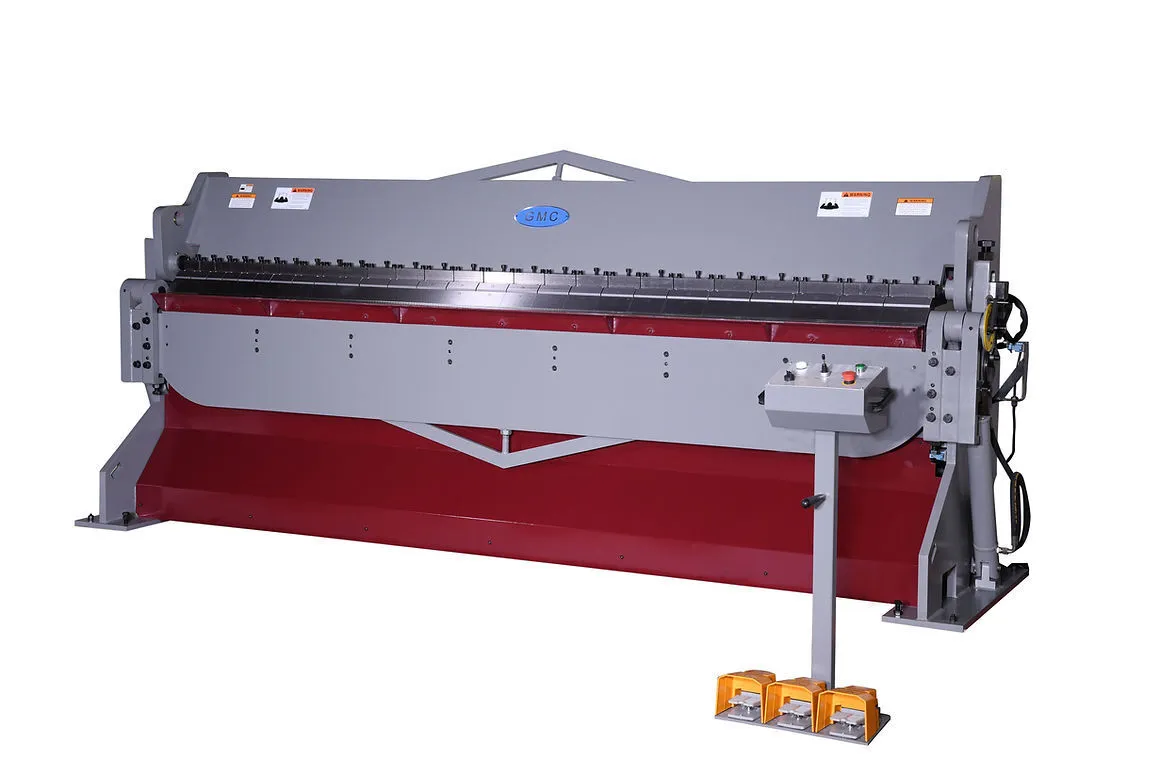

GMC HBB-1214 HBB-1214, 12' x 14 Ga. Hydraulic Box and Pan Brake
Have one to sell?
ConditionNew
New
Standard Features
• Taiwan Machines
• ISO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece
• 26” manual back gauge with handwheel
• 1” manual beam adjustment ( front and back )
• Min. reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• Germany Rexroth Hydraulic logic system centrally located and quiet
• A wide guidebody ensures strong, stable, smooth & accurate movement
• Total pieces fingers assortment:
1. HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
2. HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
3. HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
4. HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
5. HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
6. HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One year warranty for parts
Max Bending Length 12'
Capacity:
Mild steel(hot roll), 60k PSI 12’x 14Ga
stainless steel, 85k PSI 12’x 16Ga
Soft aluminum, 28k PSI 12’ x 10Ga
Hemming max. thickness mild steel 26Ga.
Bend Degree 135
Max. Box & Pan Depth 153mm=6.02”
Large Beam Opening 3"
Oil Tank Gal.
Hydraulic oil recomended: 32 Gal Shell #68 or equivalent
Main Motor:
10 HP 3 Phase
Prewired: 220VAC 35A
Optional: 440VAC 20A
Machine Weight: 8,950 lbs.
Shipping Weight: 9,150 lbs.
Overall Dimensions: (LxWxH) 166" x 46" x 66"
Shipping Dimensions: 179" x 41" x 67"
Standard Included Equipment
• Assorted fingers
• 26” manual back gauge with one side handwheel operation
• Angle set up dial
• Hydraulic clamping system
• Foot pedal control for hydraulic clamping & auto mode
