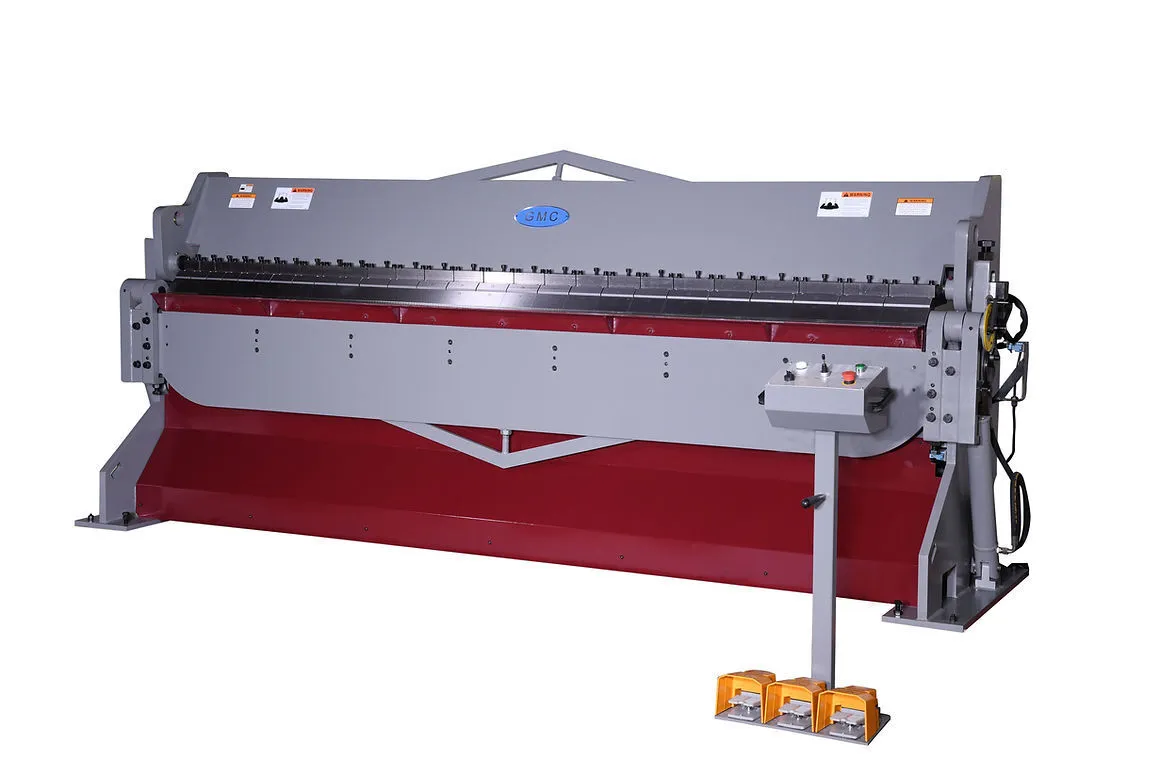

GMC HBB-1014, 10 ft Sheet Metal Brake, 14 Gauge Mild Steel
Have one to sell?
ConditionNew
New
10' x 14Ga. Hydraulic Box and Pan Brake with free angle set-up control 5 HP, 220V/440V, 3PH
Standard Features
• Taiwan Machines
• ISO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece
• 26” manual back gauge with handwheel
• 1” manual beam adjustment ( front and back )
• Min. reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• German Rexroth Hydraulic logic system centrally located and quiet
• A wide guidebody ensures strong, stable, smooth & accurate movement
• Total pieces fingers assortment:
- 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One year warranty for parts
Max Bending Length: 10'
Bending Capacity:
Mild Steel(hot roll), 60k PSI 14 Ga.
Stainless Steel 85k PSI 16 Ga.
Soft aluminum 28k PSI 10Ga.
Minimum material thickness 26Ga.
Open hem max thickness x 10’ 22Ga
Close hem max thickness x 10 28Ga
Bend Degree: 135
Max. Box Depth: 153mm=6.02”
Large Beam Opening: 3"
Manual Back Gauge: 26”
Oil Tank Gal. 17 Gal
Hydraulic Oil: Shell #68 or equivalent
Main Motor
5 HP 3 Phase
Prewired: 220VAC 20A
Optional: 440VAC 10A
Weight 6,850 lbs.
Shipping Weight: 6,950 lbs.
Overall Dimensions 142" x 46" x 66"
Shipping Dimensions: 153” x 41” x 67”
Standard Equipment
• Assorted fingers
• 26” manual back gauge with one side handwheel operation
• Angle set up dial
• Hydraulic clamping system
• Foot pedal control for hydraulic clamping & auto mode
