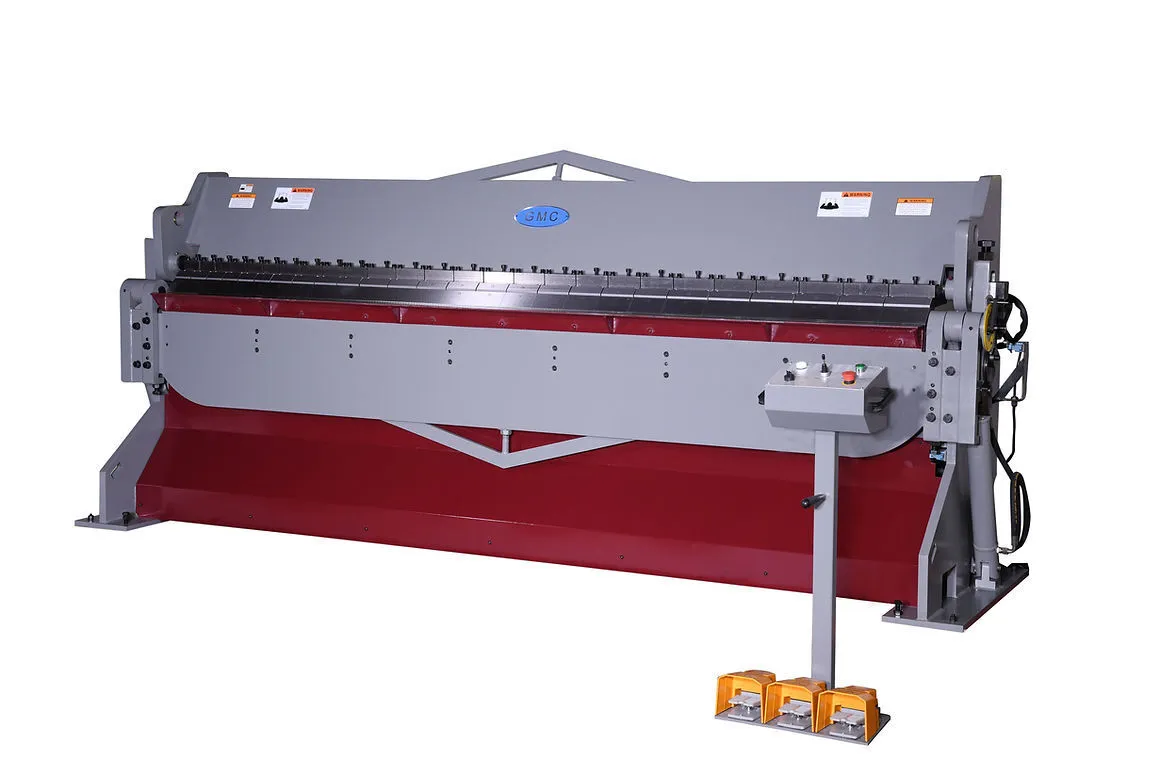

GMC HBB-0810 , 8 ft Sheet Metal Box and Pan Brake

Description

Our 8 ft Sheet Metal Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.

Standard Features
• Taiwan Machines
• ISO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece
• 26” manual back gauge with handwheel
• 1” manual beam adjustment ( front and back )
• Min. reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• Germany Rexroth Hydraulic logic system centrally located and quiet
• A wide guidebody ensures strong, stable, smooth & accurate movement
• Total pieces fingers assortment:
1. HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
2. HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
3. HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
4. HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
5. HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
6. HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One year warranty for parts
