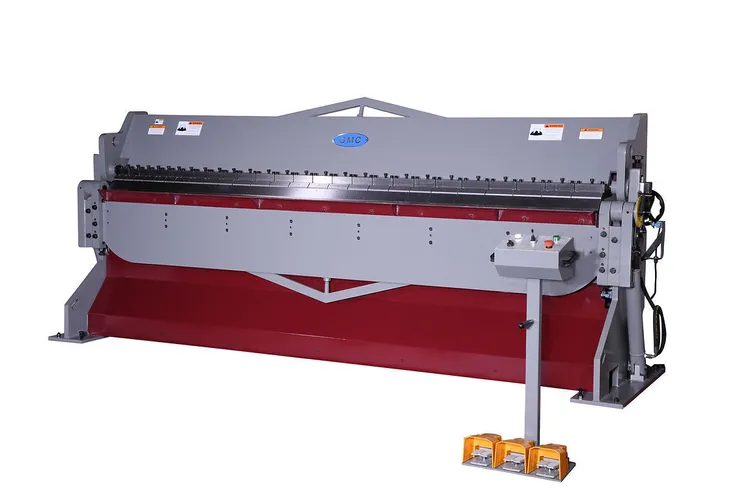

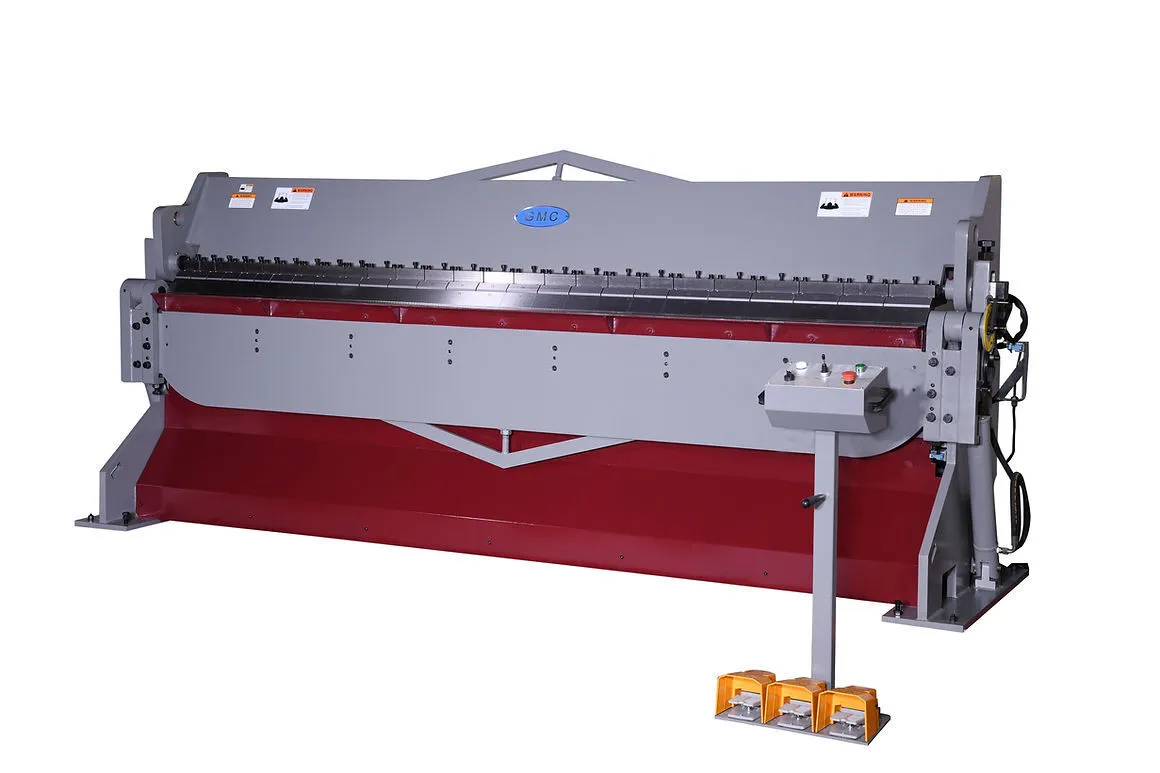

GMC HBB-0610, 6 FT Sheet Metal Hydraulic Box and Pan Brake
Have one to sell?
ConditionNew
New
Our 6 FT Sheet Metal Hydraulic Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
Standard Features
• Taiwan Machines
I• SO 9001 certified
• Hydraulic adjustment for opening
• Hydraulic power clamping for workpiece
• 26” manual back gauge with handwheel
• 1” manual beam adjustment ( front and back )
• Min. reverse bend is ¾” (20mm)
• Heavy welded all steel construction for maximum rigidity
• Germany Rexroth Hydraulic logic system centrally located and quiet
• A wide guidebody ensures strong, stable, smooth & accurate movement
• Total pieces fingers assortment:
- 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
• Central control panels on each side for convenient operation
• Jog and auto operation modes
• Overload protection and disconnect switch
• One year warranty for parts
Max Bending Length: 6’
Bending Capacity:
Mild Steel (hot roll) 60k PSI 10 Ga.
Stainless Steel 85k PSI 12 Ga.
soft aluminum 28K PSI 1/4"
Minimum material thickness 26Ga.
Opening hem max thickness 20Ga x 6'
Closing hem max thickness 22Ga x 6'
Bend Degree: 135
Max. Box Depth: 153mm=6.02”
Large Beam Opening: 3"
Manual Back Gauge: 26”
Oil Tank Gal. 12 Gal.
Hydraulic Oil: Shell #68 or equivalent
Main Motor:
5 HP 3 Phase
Prewired: 220VAC 15A
Optional: 440VAC 10A
Weight 5,000 lbs.
Shipping Weight: 5,050 lbs.
Overall Dimensions 91" x 46" x 67"
Shipping Dimensions: 105” x 40” x 66”
Standard Included Equipment
• Assorted fingers
• 26” manual back gauge with one side handwheel operation
• Angle set up dial
• Hydraulic clamping system
• Foot pedal control for hydraulic clamping & auto mode
