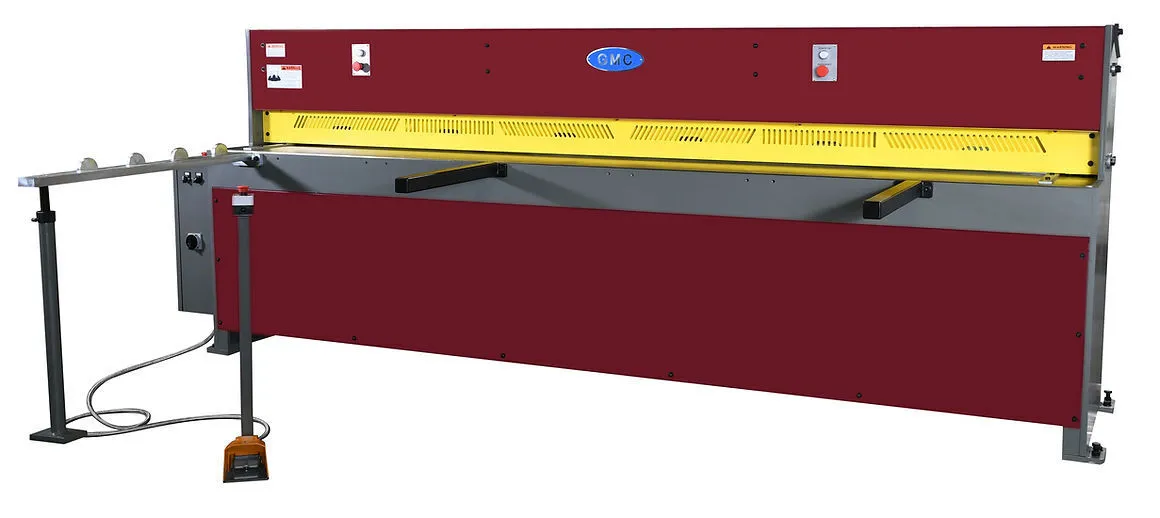

GMC EPS-0610M, 6 Ft Mechanical Shearing Machine
Have one to sell?
ConditionNew
New
Our 6 Ft Mechanical Shearing Machine - EPS-0610M mechanical metal shearing machine is rated to shear up to 72" metal steel sheets at up to 30 strokes per minute. With an array of features, quickly adjust your backgauge, precision driven gear box, all electric low maintenance design, will add value to any fabrication machinery shop.
Standard Features:
• ISO 9001 certified
• American design and Taiwan quality machine
• HD all steel construction for maximum rigidity
• Precision driven gearbox
• Full length 30 strokes per minute
• 60” long squaring arm with inch / mm scale
• spring hold-downs
• high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
• 2-edge indexable upper blade and 4-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
Cutting Capacity:
Mild Steel - HRS (tensile 60,000 PSI) 6' x 10Ga.
Stainless Steel (tensile 85,000 PSI) 6' x 14Ga.
Soft Aluminum (tensile 28,000 PSI) 6' x 1/4"
min. thickness 22Ga
Blade Length 80"
Strokes per minute 28
Worktable height 32"
Front support arm 36"
Back gauge 26" Manual Back gauge
Blade Rake Angle 2.5 Degree
Main Motor:
7-1/2HP, 3 Phase 25A
Prewired: 220VAC
(15A/440VAC optional)
Machine weight 5,550 lbs.
Shipping weight 5,650 lbs.
Machine dimensions 100" x 43" x 68"
Shipping dimensions 100" x 43" x 68"
Standard Equipment:
• 26” manual back gauge with one side handwheel
• 60” long squaring arm with inch / mm scale, mounted on right side of the table
• 2 each 24” front support arms
• full length finger guard
• Removable safety foot pedal control
• One set of upper & lower blades
