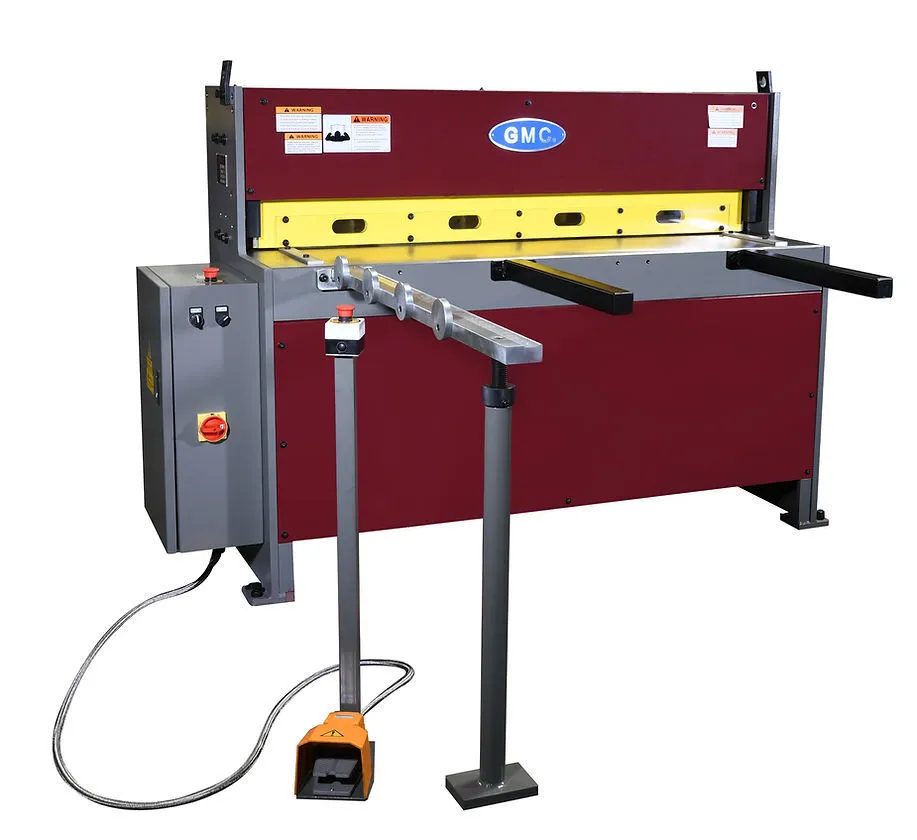

GMC EPS-0410M, 4 FT Mechanical Shearing Machine
Have one to sell?
ConditionNew
New
Shop our 4 FT Mechanical Shearing Machinethat are capable of cutting up to 10 gauge mild steel and 14 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
Standard Features:
• ISO 9001 certified
• American design and Taiwan quality machine
• HD all steel construction for maximum rigidity
• Precision driven gearbox
• Full length 30 strokes per minute
• 60” long squaring arm with inch / mm scale
• spring hold-downs
• high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
• 2-edge indexable upper blade and 4-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
Cutting Capacity:
Mild Steel - HRS (tensile 60,000 PSI) 4' x 10Ga.
Stainless Steel (tensile 85,000 PSI). 4' x 14Ga.
Soft Aluminum (tensile 28,000 PSI) 4' x 1/4"
min. thickness 22Ga
Blade Length 52"
Strokes per minute 30
Worktable height 32"
Front support arm 36"
Back gauge 26" Manual Back gauge
Blade Rake Angle 2.2 Degree
Main Motor:
5-1/2HP, 3 Phase 20A/220v
(10A/440VAC optional)
Machine weight 3,110 lbs.
Shipping weight 3,150 lbs.
Machine dimensions 73" x 43" x 68"
Shipping dimensions 80" x 40" x 62"
Standard Equipment:
• 26” manual back gauge with one side handwheel
• 60” long squaring arm with inch / mm scale, mounted on right side of the table
• 2 each 24” front support arms
• full length finger guard
• Removable safety foot pedal control
• One set of upper & lower blades
