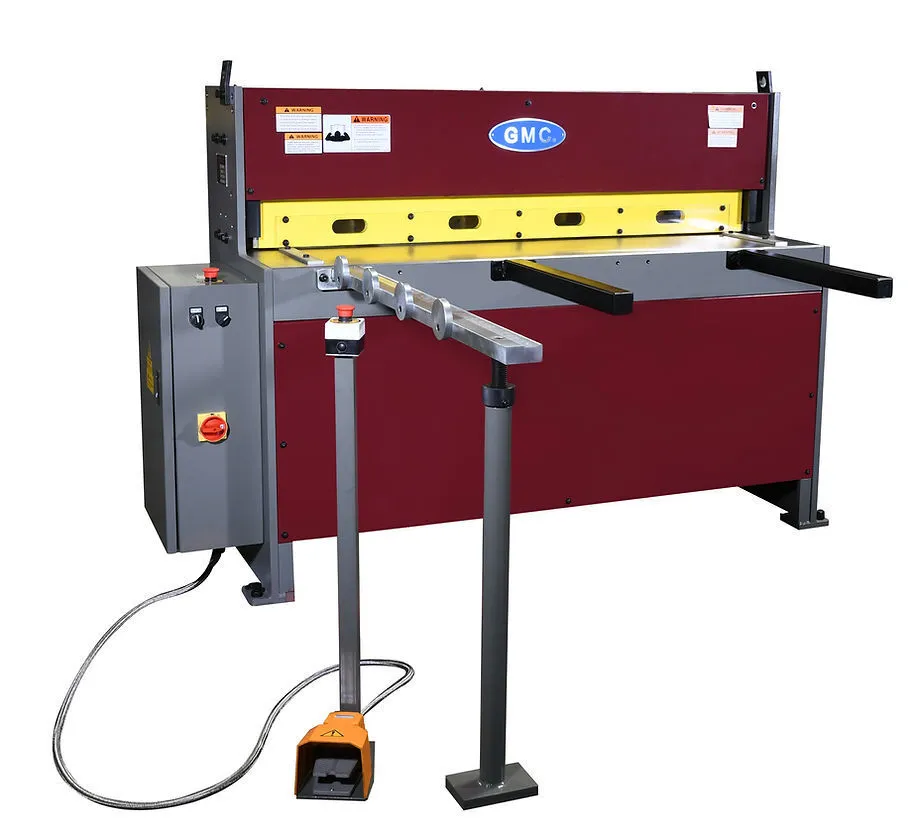

GMC 4-Foot Mechanical Shear EPS-0412M - 12Ga. Electric Shearing Machine
Have one to sell?
ConditionNew
New
Shop our 4 foot mechanical shears that are capable of cutting up to 12 gauge mild steel and 16 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
Standard Features:
• ISO 9001 certified
• American design and Taiwan quality machine
• HD all steel construction for maximum rigidity
• Precision driven gearbox
• Full length 30 strokes per minute
• 60” long squaring arm with inch / mm scale
• spring hold-downs
• high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
• 2-edge indexable upper blade and 4-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
Cutting Capacity:
Mild Steel - HRS (tensile 60,000 PSI) 4' x 12 Ga.
Stainless Steel (tensile 85,000 PSI) 4' x 16 Ga.
Soft Aluminum (tensile 28,000 PSI) 4' x 8 Ga.
min. thickness 26Ga.
Blade Length 52"
Strokes per minute 35
Worktable height 32"
Front support arm 36"
Go-to Back gauge 26" manual back gauge
Blade Rake Angle 2 Degree
Main Motor:
4HP, 3 Phase 15 AMP
Prewired: 220VAC
(7A/440VAC optional)
Machine weight. 2,110 LBS
Shipping weight. 2,123 LBS
Machine dimensions 72" x 42" x 67"
Shipping dimensions 80" x 35" x 61"
Standard Equipment:
• 26” manual back gauge with one side handwheel
• 60” long squaring arm with inch / mm scale, mounted on right side of the table
• 2 each 24” front support arms
• full length finger guard
• Removable safety foot pedal control
• One set of upper & lower blades
