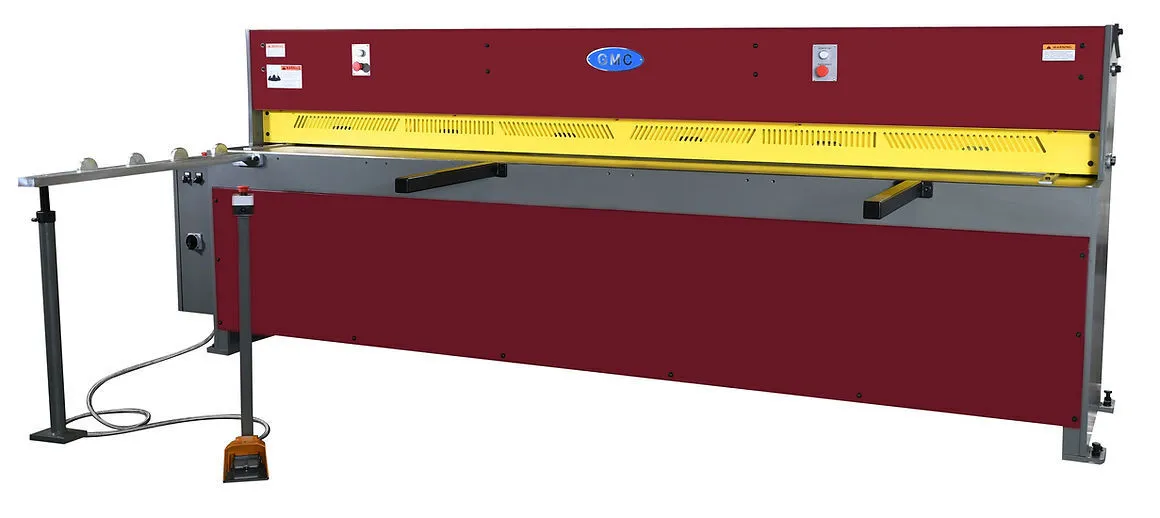

GMC EPS-1014M, 10' x 14 Ga. Mechanical Shear - Shearing Machine
Have one to sell?
ConditionNew
New
Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
Standard Features:
• ISO 9001 certified
• American design and Taiwan quality machine
• HD all steel construction for maximum rigidity
• Precision driven gearbox
• Full length 26 strokes per minute
• 60” long squaring arm with inch / mm scale
• spring hold-downs
• high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
• 2-edge indexable upper blade and 4-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
Cutting Capacity:
Mild Steel 10' x 14Ga.
Stainless Steel 10' x 18Ga.
soft aluminum 10' x 10Ga.
min. thickness 26Ga.
Blade Lenght 10'1"
Strokes per minute 26
Worktable height 30-1/2"
Front support arm 24"
Back gauge 26" Manual Back gauge
Blade Rake Angle 2.0 Degree
Main Motor 7 1/2 HP, 220V/25A - 440V/15A, 3 Phase
Machine weight 7,280 LBS
Machine dimensions 147" x 57" x 53"
Standard Equipment:
• 26” manual back gauge with one side operated handwheel.
• 60” long squaring arm with inch / mm scale, mounted on right side of the table
• 2 each 24” front support arms
• full length finger guard
• Removable safety foot pedal control
• One set of upper & lower blades
