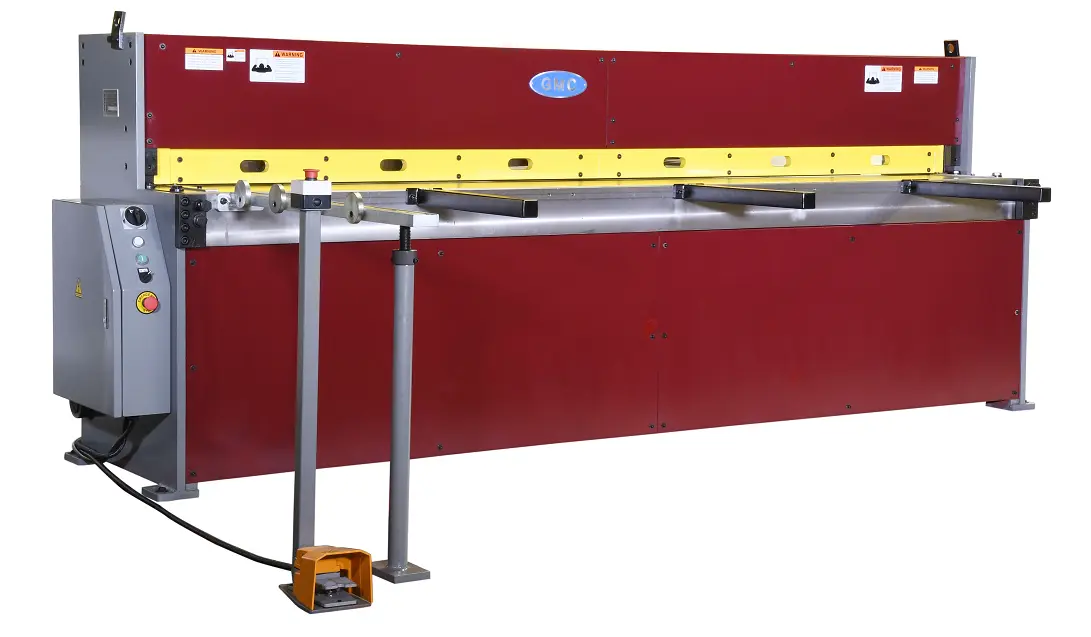

GMC HS-0610MD, 6' x 10 Ga. Hydraulic Metal Shear
Have one to sell?
ConditionNew
New
Our HS-0610MD, 6 foot hydraulic metal shears can cut up to 10 gauge by 72” wide mild steel sheet metal. A hardened shearing blade is installed and pre-gapped ready for buyers to operate upon arrival. Our light duty hydraulic shears are dependable and deliver sharp razor cuts with ease.
Standard Features:
• Taiwan machines
• ISO 9001 certified
• HD all steel construction for maximum rigidity
• German logic quiet Rexroth hydraulic system
• Adjustable stroke from 16-20 strokes per minute
• 60” long squaring arm with inch / mm scale
• Spring hold-downs
• High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
Cutting Capacity:
Mild Steel 6' x 10Ga.
Stainless Steel 6' x 14Ga.
Soft aluminum 6' x 1/4" Ga.
Minimum Capacity 24 Ga.
Blade Length 6' 6"
Strokes per minute adjustable 16-20
Throat depth 16"
Worktable height 30 1/2"
Front support arm 24"
Back gauge 26"
Blade Rake Angle 1.5 Degree
Oil Tank Capacity 21 Gal
Main Motor:
5 1/2 HP
Prewired: 220/3-Phase
Optional: 440V 3-Phase
Machine Weight 4,150 lbs.
Machine Dimensions 98" x 35" x 52"
Standard Equipment:
• 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
• 60” long squaring arm with inch / mm scale
• 2 each 24” front support arms
• 2 each 14” Side gauges with inlaid inch/metric dual scale
• Spring independent hold-downs
• Full length finger guard
• Removable safety foot pedal control
• One set of blades
