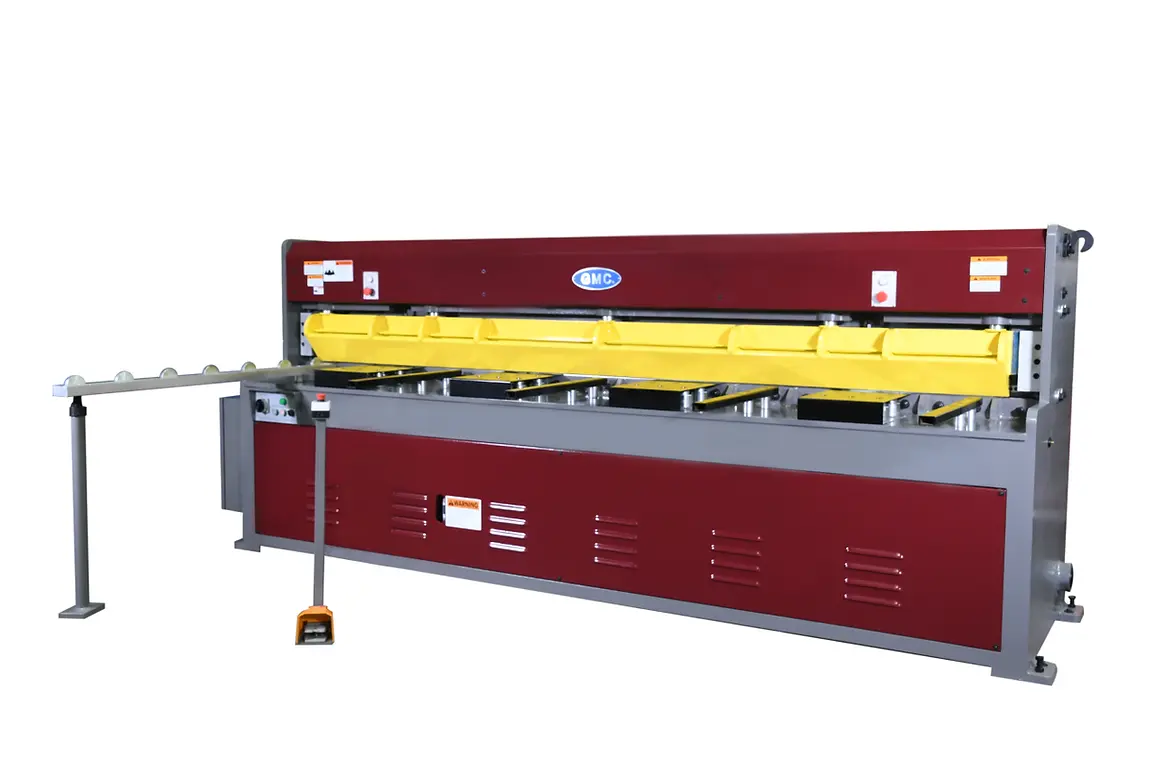

GMC HS-1010M-10' x 10 Ga. Hydraulic Metal Shear - Shearing Machines
Have one to sell?
ConditionNew
New
Standard Features:
• ISO 9001 certified
• Taiwan machines
• HS-1010M comes with 24” manual back gauge, one side handwheel operate )
• adjustment 0.004” , inch/mm digital display
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• Shadow line for accurate straight cutting
• 60” squaring arm with inlaid inch/metric dual scale
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened
• to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts
Cutting capacity:
Mild steel 10’ x 10 Ga.
Stainless steel 10’ x 14 Ga.
soft aluminum 10'x 1/4"
min. thickness 24 Ga
Blade length 10' 1" = 121"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 24" Manual B.G.
Blade rake angle 2 degree
Oil tank cap. 26 Gal
Main Motor:
7 1/2 HP 3 Phase
Prewired: 220V/35A
Optional: 440V/20A
Machine weight 8,850 LBS
Machine dimensions 178" x 67" x 65"
Hydraulic Metal Shear Standard Equipment:
• HS-1010M comes with 24” manual back gauge, one side handwheel operate )
• adjustment 0.004” , inch/mm digital display
• 1 each 60” squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA)
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 2 each 24” front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
• Tool box
