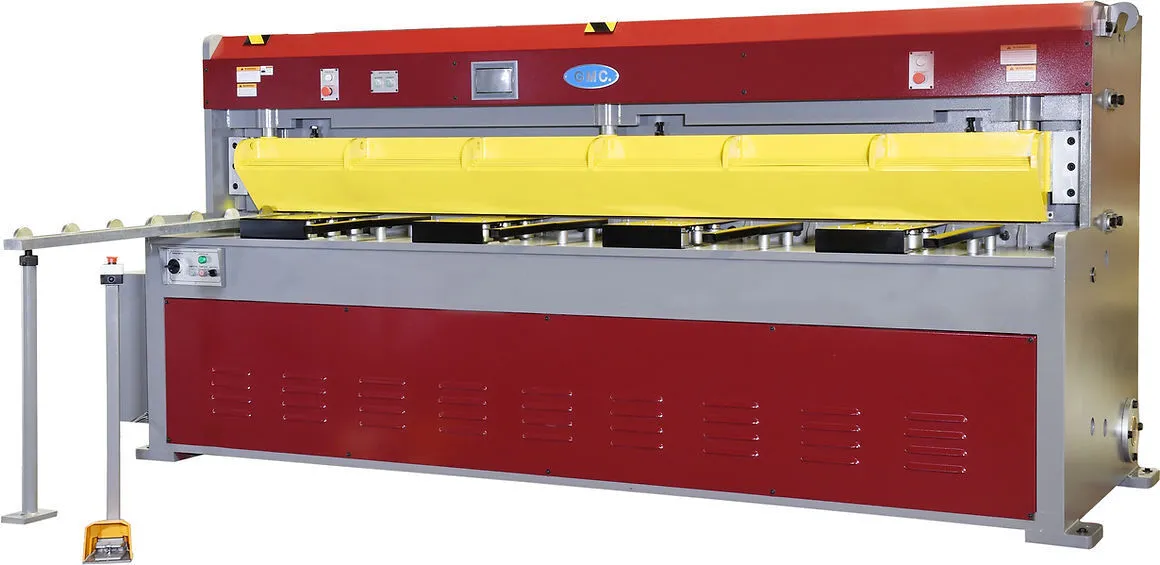

GMC HS-1214M-144" x 14 Ga. Hydraulic Metal Shear - Shearing Machine
Have one to sell?
ConditionNew
New
Standard Features:
• ISO 9001 certified
• Taiwan machines
• Quick Change Blade Gap Adjustment
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Shadow line for accurate straight cutting
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened
• to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts
Cutting capacity:
Mild steel 12’ x 14 Ga.
Stainless steel. 12’ x 18 Ga.
soft aluminum 12' x 10 Ga.
min. thickness 22Ga
Blade length 12'
Strokes per minute 10-12
Throat depth 18"
Worktable height 34 1/2"
Front support arm 24"
Back gauge 24" manual back gauge
Blade rake angle 2 degree
Oil tank cap. 26 Gal.
Main Motor 10 HP, 220V/35A - 440V/20A
Machine weight 9150 LBS
Machine dimensions 195"x44"x66"
Standard Equipment:
• 24” manual back gauge( one side wheel drive )
• 1 each 60” squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA)
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 2 each 24” front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
• Tool box
