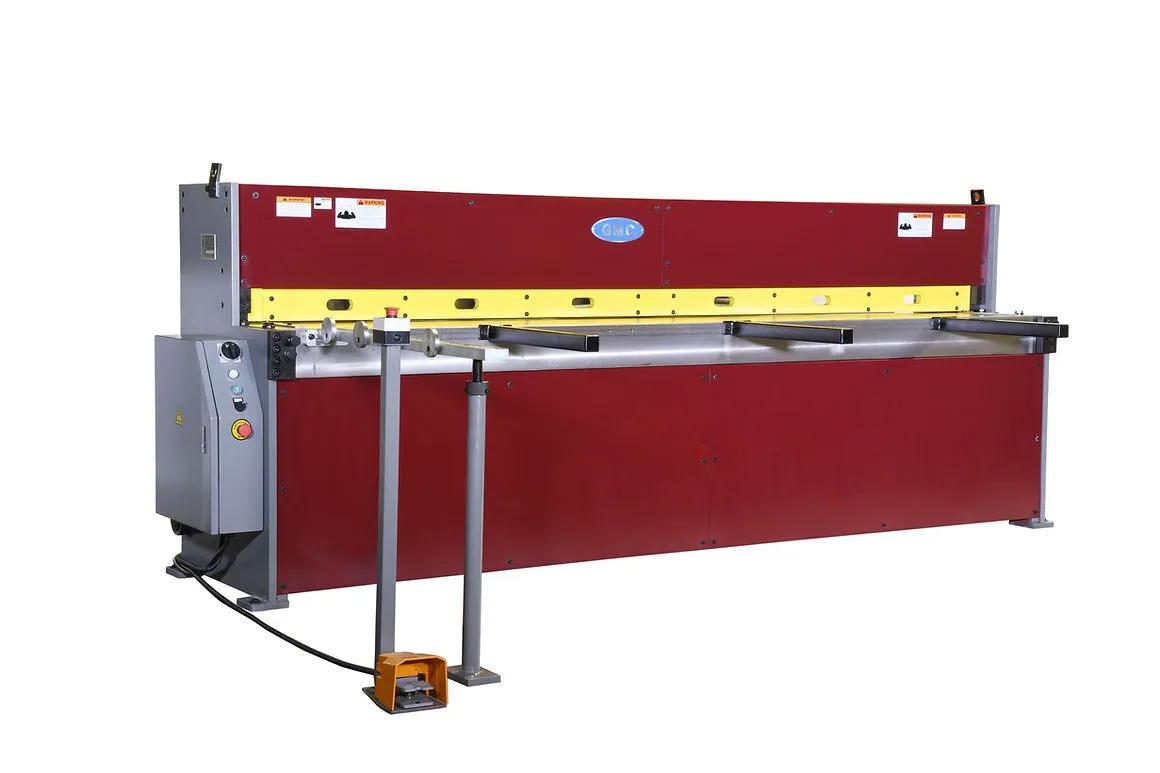

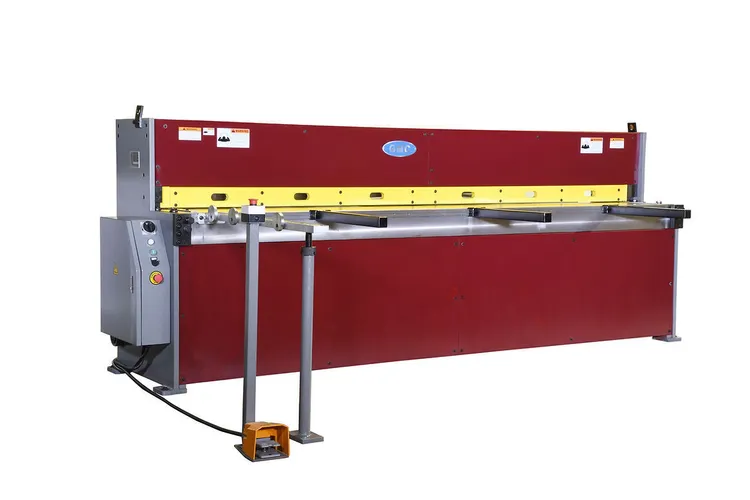

10' x 14 Ga. Hydraulic Metal Shear - Shearing Machines
Have one to sell?
ConditionNew
New
Standard Features:
• Taiwan machines
• ISO 9001 certified
• HD all steel construction for maximum rigidity
• German logic quiet Rexroth hydraulic system
• Adjustable stroke from 16-20 strokes per minute
• 60” long squaring arm with inch / mm scale
• Spring hold-downs
• High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
• 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length with full view finger guard
• Front supports and (2) side gauges
• Safety type foot pedal control
• Jog, single continuous auto operation modes
• One year warranty for parts
Cutting capacity:
mild steel 10’ x 14Ga.
stainless steel 10’ x 18 Ga
min. thickness 26Ga.
soft aluminum, tensile 28,000PSI 10Ga.
Blade length 10’1”
Strokes per minute adjustable 14-18
Throat depth 16”
Worktable height 30-1/2”
Front support arm 24”
Back gauge, manual 26” manual
blade rake angle 1.5 degree
oil tank cap. 20gal
Main motor
5-1/2 HP
220V/440V, 3PHASE
Machine weight 5,200 LBS
Machine dimensions 139”X35”52”
Standard Equipment
• 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
• 60” long squaring arm with inch / mm scale
• 2 each 24” front support arms
• 2 each 14” Side gauges with inlaid inch/metric dual scale
• Spring independent hold-downs
• Full length finger guard
• Removable safety foot
