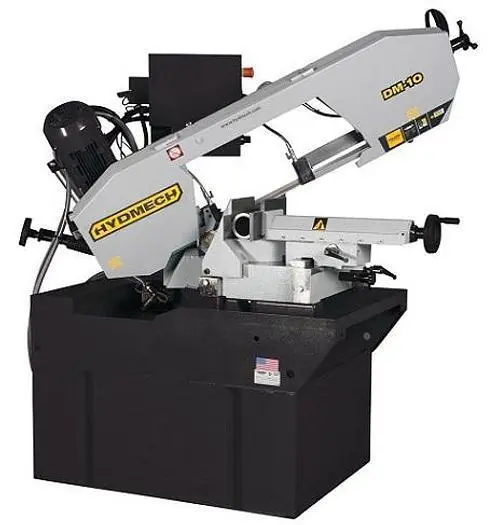

Used HYD MECH DM 10 | Horizontal Band Saws

Description

Warranty:
One year parts
HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever. Specification and pricing may change with out notice.
Technical Specifications
Capacity
Rectangular (h x w)
Round
Square
90°
9 1/2” x 11”
10”
9”
45° Left
6 1/4” x 4 1/2”
5 3/4”
4 1/2”
30° Right
5” x 4 1/2”
4”
5”
45° Right
8 1/4” x 7”
7 1/4”
7”
Blade Size
1” x 9’ 8”
Coolant Tank Capacity
3.5 Gallons
Blade Drive
2/2.4 HP
Machine Weight
970 lbs.
Machine Voltage
208, 240, 480, or 575 v
Table Height
34”
Blade Speed
Two speed – 118-236 SFM
Dimensions (w x l x h)
35.5” x 68” x 65”
Standard Machine Features
· Manually operated, double miter, easy swing, cast saw head
· Quick release cast-iron material vise with dovetail ways
· Rotating table with cut slot that moves in tandem with sawing head
· Band tension indicator
· Infinitely adjustable, gravity feeding, sawing head
· Replaceable blade brush
· Small footprint
· Robust steel base
· Easy to read angle scale
· Adjustable guide arm
· Pre-set, replaceable carbide guide inserts
· True-direct drive – no belts or pulleys
· Mechanical blade tensioning
· Safety door interlocks
· Flood coolant
· Adjustable work stop
Optional Machine Features
· Mist lubrication
· Pneumatic material vise with foot pedal
· Single phase (Note: limits user to high blade speed only)
· 59” R2 Work stop for K110 table
· K110 5’ infeed/out feed roller
· Adapter Plate for K110 table
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION. THE CONDITION OF THE MACHINE IS AS IT HAS BEEN REPRESENTED TO US. ALL MACHINES ARE SUBJECT TO PRIOR SALE. EVERY MACHINE, UNLESS OTHERWISE SPECIFIED, IS OFFERED SUBJECT TO OUR GUARANTEE THAT IF FOUND TO BE MECHANICALLY UNSATISFACTORY WITHIN 30 DAYS AFTER SHIPMENT, SAME MY BE RETURNED, FREIGHT PREPAID FOR FULL CREDIT OR REPAIRED AT DEALER’S OPTION. ALL MACHINES RETURNED TO US MUST BE IN AS GOOD A CONDITION AS WHEN SHIPPED.
