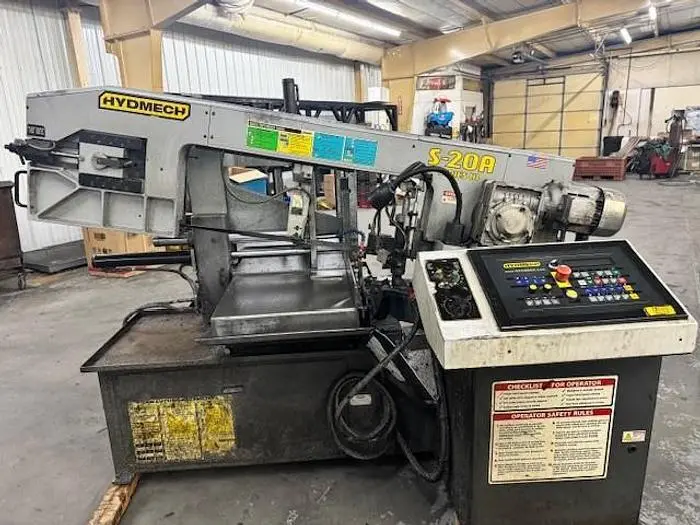

2014 HydMech Group S20A
Have one to sell?
ConditionUsed
1 available
Specification and pricing may change with out notice.
The S-20A, automatic scissor style band saw features a swing head design and provides exceptional miter cutting capability for light to medium duty applications.
Featuring a 13″H x 18″W capacity at 90°, 3 HP motor, and 1″ blade, the S-20A is a versatile, automatic scissor style band saw ideal for use in tight working spaces.
Standard Features:
Easy swing, heavy duty cast iron saw head
Optional Features:
Full Capacity Bundling
240 Volt
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.
Manufacturer HydMech Group
Model S20A
Year 2014
Condition Used
Serial Number 8C0514607
Stock Number CustCNCJH012025
Capacity Rectangular (h x w) Round
90° 13” x 18” 13”
45° 13” x 10 3/4” 12”
30° 13” x 7 3/4” 8 1/2”
Blade size 1” x 14’ 10”
Blade drive 5 HP VFD
Machine voltage 240 Three Phase
Blade speed 75-350 SFM
Coolant tank capacity 12 Gallons
Work load 5,000 lbs.
Machine weight 3,800 lbs.
Table height 31"
Dimensions (w x l x h) 93” x 86” x 52”
