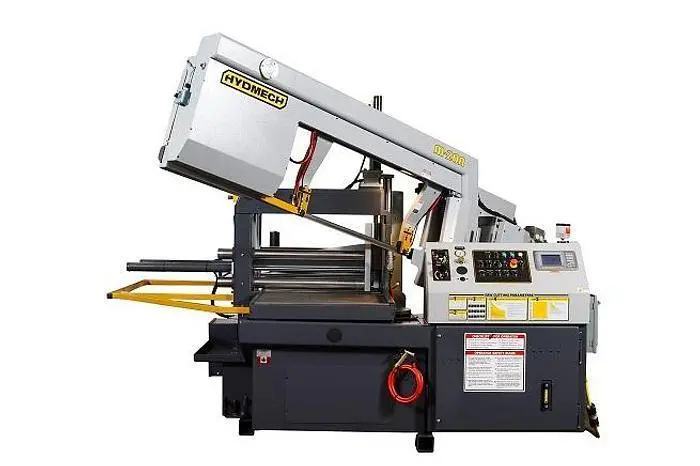

HydMech Group M-20A, 20" x 30"

Description

Delivery:
Bundling $88,100.00 Plus Shipping
Terms:
Net before Shipment
F.O.B.:
Little Rock
Warranty:
Two year parts, One year labor (Labor provided by dealer)
Machines in stock may have options not listed on this quote and may have freight from factory added also. Please ask your salesman about stock machines.
HydMech and SMF and Machine Tools reserves the right to modify this price without liability whatsoever. Specification and pricing may change with out notice.
Standard Machine Features
• Automatic programmable mitering with “go to” angle functionality
• Automatic multi-indexing up to 33” in a single stroke.
• Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.
• 10 HP VFD. True direct blade drive – no belts/pulleys
• Full capacity, full stroking hydraulic vises
• Hydraulic positive down feed
• Blade chamber separates material from cut part
• Cast iron band wheels
• Automatic PLC control programmable up to 99 jobs with 5 in queue.
• Replaceable blade brush
• Robust steel base
• Automatic chip removal auger
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hardened replaceable wear plates on material vises
• Hydraulic band tensioning
• Hydraulic carbide guide tensioning
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Out of stock switch
• Variable vise pressure
Optional Machine Features
• Blade deviation
• Full capacity hydraulic overhead bundling
• Chip bucket
• Mist lubrication
• Outboard vise clamping options available upon request
• Remote console – 10′ cord
• Vertical rollers
• Idler conveyors
• Powered conveyors
SPECIFICATIONS AND CONDITION ARE CORRECT TO THE BEST OF OUR KNOWLEDGE AND ARE SUBJECT TO YOUR VERIFICATION AND CORRECTION.
