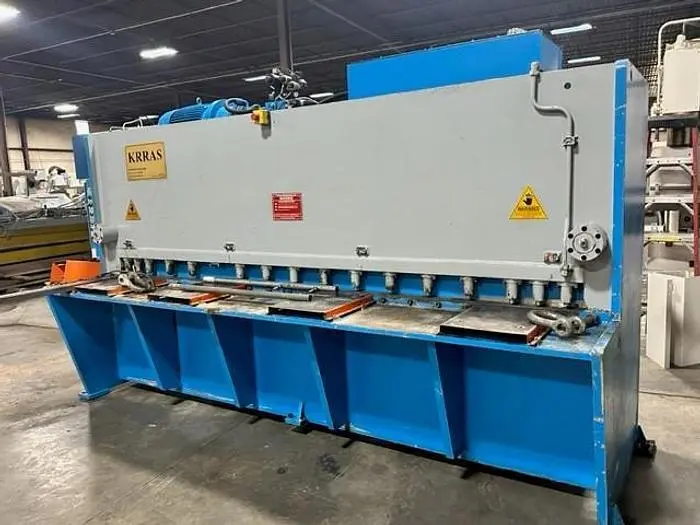

Krras RAS 306 1/4 X 10 Shear
Power Squaring Shears (Inch)
This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!
Standard Accessories:
Variable rake angle adjustment
Rapid blade gap adjustment
4 edge high carbon high chrome D2 quality shears blades
Front operated motorized backgauge range to 39"
Shadow line lighting & well designed finger guard for clear view of cutting line
Safety foot switch operation.
Top blades will automatically return to top position when foot is removed from foot pedal
39" side squaring arm with disappearing stops
Independent clamping of individual hold downs
| Max Thickness | 0.25" |
| Length of Blade | 10' |
| Hyd/Mech | Hyd |
| Back Gauge | 31" |
| Power | 10 hp |
| SPM | 17 strokes/min. |
Manufacturer Krras
Model RAS 306 1/4 X 10 Shear
Condition Used
Serial Number 1265
Stock Number 00046
Capacity 10' X .250 Mild 1/8" x 10' Stainless
Blade length 122"
Strokes per Minute 8-10
Table height 34.5"
NC Back Gauge 39" Powered
Front Support Arm 24"
Blade Rake 1-3 Degree
Motor HP 15 HP
Shipping weight 13,850 LBS
Dimensions (w x l x h) 148" x 70" x 85"
