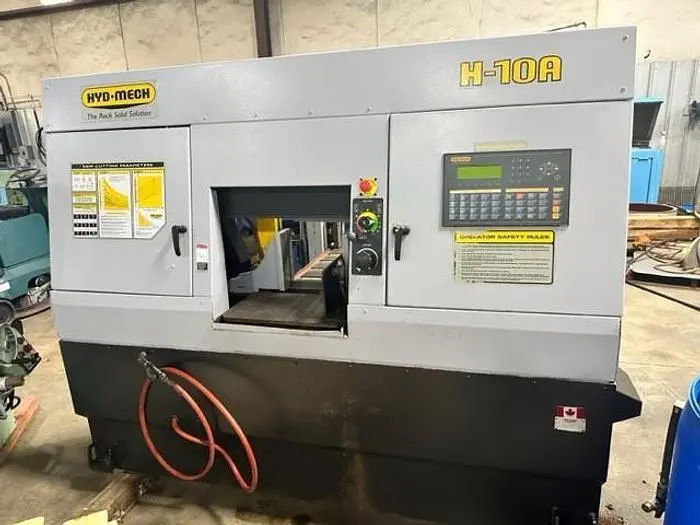

2007 Hydmech H10A

Manufacturer Hydmech
Model H10A
Year 2007
Condition Used
Serial Number HSA1007155
Stock Number 00031
Capacity Rectangular 90 Degrees 10" x 10"
Capacity Round 90 Degrees 10"
Capacity Square 90 Degrees 10" x 10"
Round Capacity 45 Degrees NA
Rectangle Capacity 45 Degrees NA
Round Capacity 60 Degrees NA
Rectangle Capacity 60 Degrees NA
Table Height 31"
Maximum Work Load 5000 lbs
Blade Size 1-1/4" x 12'6" x .042
Blade Speed 50-350 sfm
Blade Guides Carbide
Blade Wheel Diameter 16"
Guide Arm AUto (vise Driven) Mounted on linear bearings
Blade Drive Motor 5 hp
Hydruaulic Drive Motor 1 hp
Hydraulic tank capacity 4 gallon
Coolant Tank Capacity 15 gallon
System Pressure 435 psi
Vise Control Hydraulic full stroke
Shuttle Stroke 0-24" single stroke, multi-index capability
Discharge Table 10"
Machine Weight 3500 lbs
Overall Dimensions 83" wide x 68" long x 67" high
