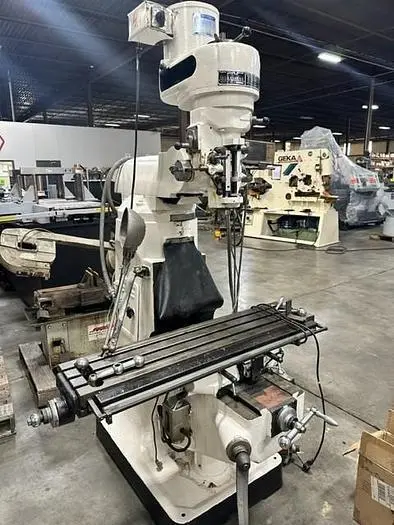

1988 Kent USA KTM-2S
Have one to sell?
ConditionUsed
1 available
3 HP spindle motor, 16 speeds step pulley milling head
9” x 42” hardened and ground table
Table, saddle, and knee with hardened and ground dovetail ways
Precision ground leadscrews with backlash compensating double nut
Precision bored and ground milling head, with super precision bearings
Meehanite® casting, with built in coolant reservoir in machine base
Manufacturer Kent USA
Model KTM-2S
Year 1988
Condition Used
Serial Number 880601-1
Stock Number 00020
Table Size 9" x 42"
Table Travel X Axis 28"
Saddle Travel Y Axis 12"
Knee Travel Z Axis 15"
Quill Travel 5"
Ram Travel 14.5"
Spindle Motor 3 HP
Spindle Speed 60-500-4200 RPM (2 Speed)
Spindle Taper R8
Quill Diameter 3.375"
Quill Feed Rate .0015" / .003" / .006" in/rev
Drilling Capacity Manual and Power .75" / .37" Diameter
Boring Capacity 6" Diameter
Milling Capacity 2.0 cipm
Maximum Work Load (Center) 750 lbs
Spindle center to Column 5"-19.5"
Net Weight 2200 lbs
