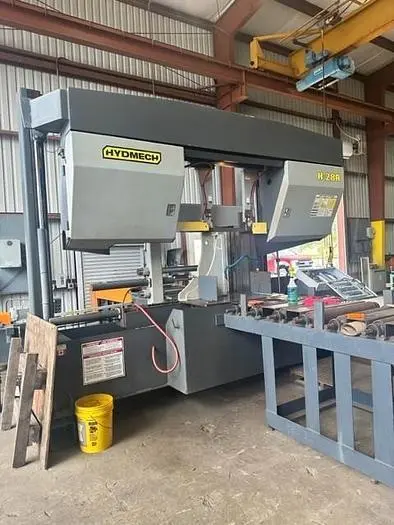

Hydmech H-28A

Description

The H-28A is fast, with its high speed shuttle feed indexing up to 32″ in a single movement.

The H-28A is an

automatic horizontal band saw

providing accurate 90° metal cutting for heavy-duty applications.

A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.

HYDMECH’s direct down feed system provides easy adjustment of both head feed rate and cutting pressure.

Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Standard Machine Features

· One piece design – no alignment necessary

· Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

· Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.

· 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises

· Robust steel base

· Blade chamber separates material from cut part

· Hydraulic positive down feed

· High resolution feed rate valve allows for constant feed rate when cutting special alloys

· Cast iron band wheels

· Mitsubishi PLC. 999 jobs, 10 jobs in queue.

· Replaceable blade brush

· Automatic chip removal auger

· Easy access electrical panel and hydraulics Blade breakage switch

· Hydraulic band tensioning with digital readout

· 5 HP hydraulic pump provides system pressure

· Hydraulic carbide guide tensioning

· Hardened, replaceable wear plates

· Safety door interlocks

· Flood coolant with wash down hose

· Work light

· Out of stock switch
