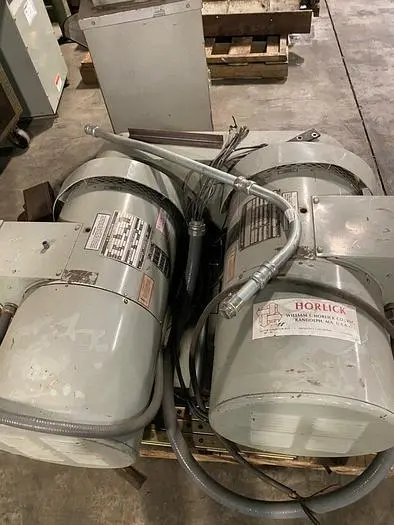

Used Motor Generator Set 480 60hz to 220/380Y 50hz

Description

• Voltage regulation: ±1% from no-load
to full-load at rated power factor
• Voltage steady state stability: ±0.5%
from no-load to full-load at rated power
factor
• Voltage adjustment range: ±10% in
stepless increments of nominal output
voltage
• Frequency regulation: 50 Hz ±1.5%
output from no-load to full-load
• Voltage transient: When a full-load at
rated power factor is applied or released,
the resultant instantaneous droop or
overshoot will not exceed 30% of preset
value
• Voltage recovery time: After a full-load
is applied or released, the output voltage
will return to the regulation band within
500 milliseconds
• Harmonic distortion: Less than 3%
max. total distortion factor and less than
2.5% max. single-phase when measured
line-to-line
• Ambient operating conditions:
Temperature at 40°C, relative humidity
at 95% (higher temperature rating for
outdoor use available upon request)
• Duty cycle: Motor-generator set and
controls are rated for continuous duty
