Millport Rhino 3 axis CNC mill with 4th rotary axis
Have one to sell?
ConditionUsed
1 available
3 Axis, Quick Change 30 Taper, DRO,Centroid CNC

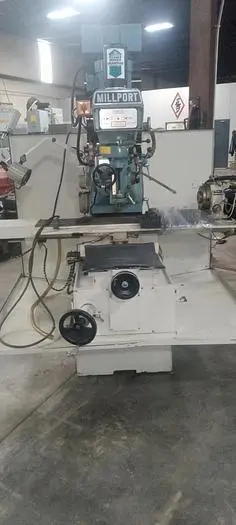

Millport Model Rhino 3 Axis CNC Bed Mill
Table Size - 10" x 50"
4 axis Troyke Rotary mounted to the table
Mdl number DL-6-5B Serial Number 5222-7
Centroid M-60A CNC Control PC Based
In Manual Mode Control Acts as 3-Axis DRO
Conversational, M & G Code
RS-232 Port
Handwheels on both X & Y Axes
Rigid Ram
Pneumatically Actuated Power Draw Bar
Hardened & Ground Ways
Bijur Spraymist Coolant System
Flood Coolant System w/Pump & Tank located in Machine Base
Specifications
Manufacturer Millport
Model Rhino 3 axis CNC mill with 4th rotary axis
Condition Used
Stock Number 00009
Table Size 10" x 50"
Table Travel x 29.75" y= 14.75"
Knee or spindle head Travel z = 15"
Spindle Travel Spindle quill = 5"
Spindle motor HP 3
Spindle Speeds 70 - 4200 RPM
Spindle Taper 30
