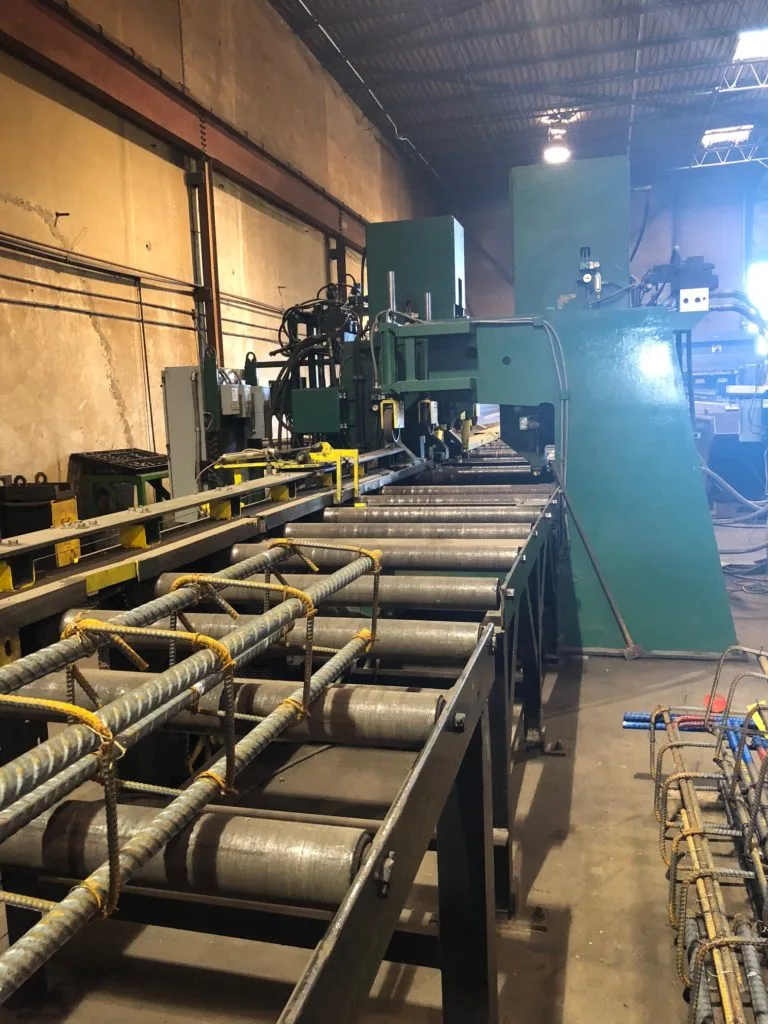

Preowned Controlled Automation Fabline Beam Line
Beam / Drill Lines
Maximum Material Width 36"
Maximum Weight: 300 LBS/FT
Maximum Flange Thickness: 1-1/4" For Layout and 1" For Punching
Minimum Material: 6" Beam (Web and Flange)
Punch
Maximum Slug Hole SIze: 1-5/8"
Flange Capacity 115 Ton
Web Capacity: 115 Ton
Web Throat Depth: 30"
Powered horizontal and vertical pinch rolls
Center section folls driven by shafrs anf gear boxes (No Chains)
Material flow from left to right
Positioning accuracey +/- 1/32″
Position speed 0 to 83 ft/min
Can be placed in tandem with saw (Optional)
Easily Networked
