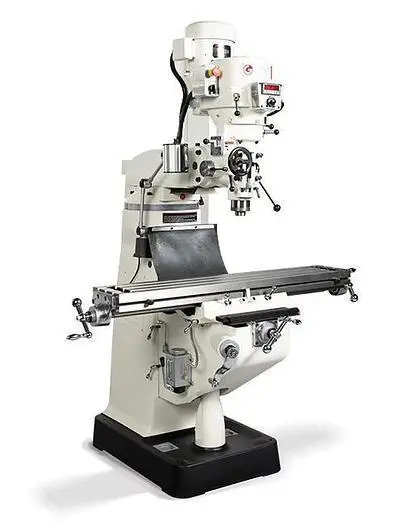

New GMV-2F Precision Milling Machine

Manufacturer GANESH
Model GMV-2F
Condition New
Table size w x l 9" x 50"
T-slot width / quantity 5/8" / 3
Table load capacity 440 Pounds
Table load capacity (evenly distributed) 900 Pounds
Table surface for floor dimension 32" - 48"
Table trave - logitudinal - x axis 38"
Table travel with power feed 33.07"
Cross travey - y axis 12"
Vertical knee trave - z axis 16"
Overarm (ram) travel 12"
Spindle nose-to-table surface 0" - 18.5"
Spindle centerline to column face 6.75" - 18.75"
Leadscrews with ground pitch surface (x & y) 0.200" per rev. (ballscrews optional)
Adjustable scale ring display resolution 0.001"
Ways - x, y, 7 z axis - hard chrome plated Hardened & Ground Dovetail Ways
Spindle head Vari-Speed
Spindle motor 3-HP, 3-Phase 220 vac
Spindle taper (hardened & ground) R-8
Spindle runout 0.00008" maximum runout
Spindle bearings - abec-7 matched set Class-7 bearings
Variable speed spindle 60 - 4,500 RPM
Head tilt (left-to-right) 90 Degrees - 0 - 90 Degrees
Head tilt (front-to-back / up-down) +45 Degrees - 0 - -38 Degrees
Quill diameter 3-3/8"
Quill travel - manual & powered feed 5"
Quill feeds - with trip release - inch 0.0015", 0.003", 0.006"
Quill feeds - with trip release - metric 0.04mm, 0.08mm, 0.16mm
Machine weight 2,222 Pounds
Electrical requirements 220 vac, 3-Phase, 60 Hz., 9.5 amps
Machine layout Width: 58", Depth: 63" - 75", Height: 79"
